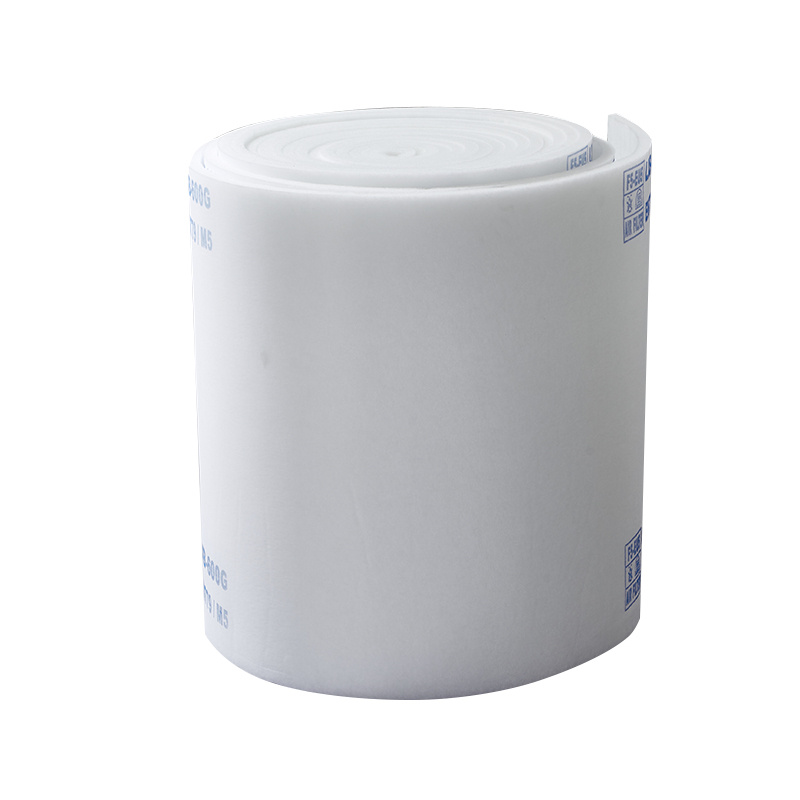

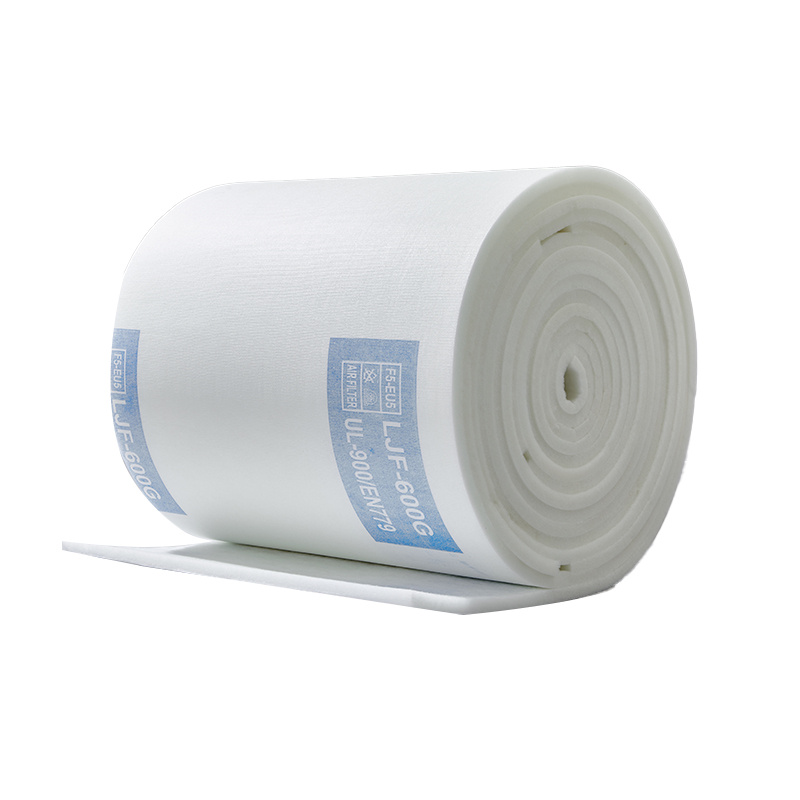

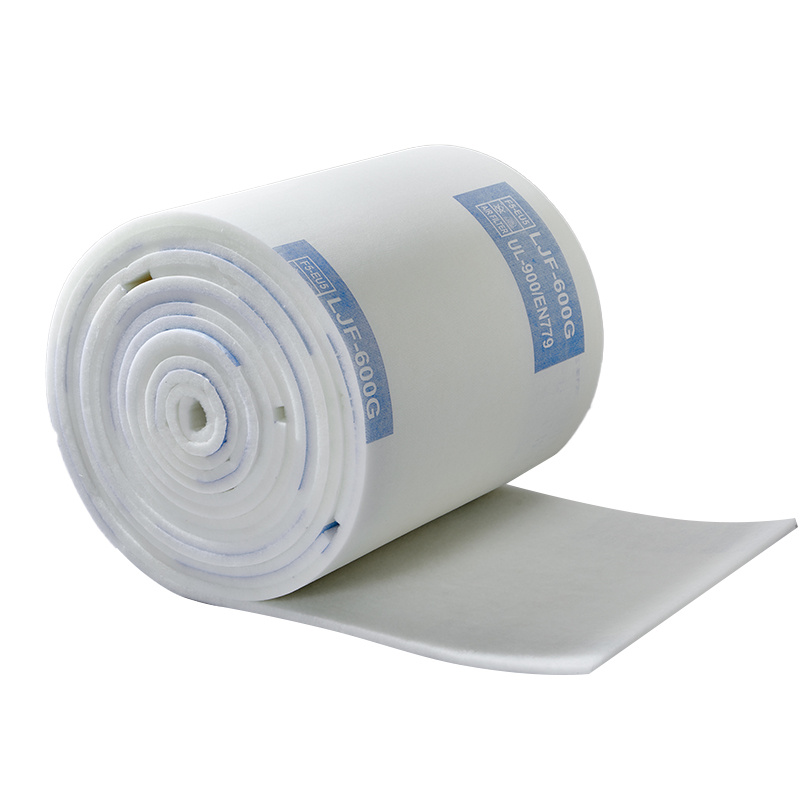

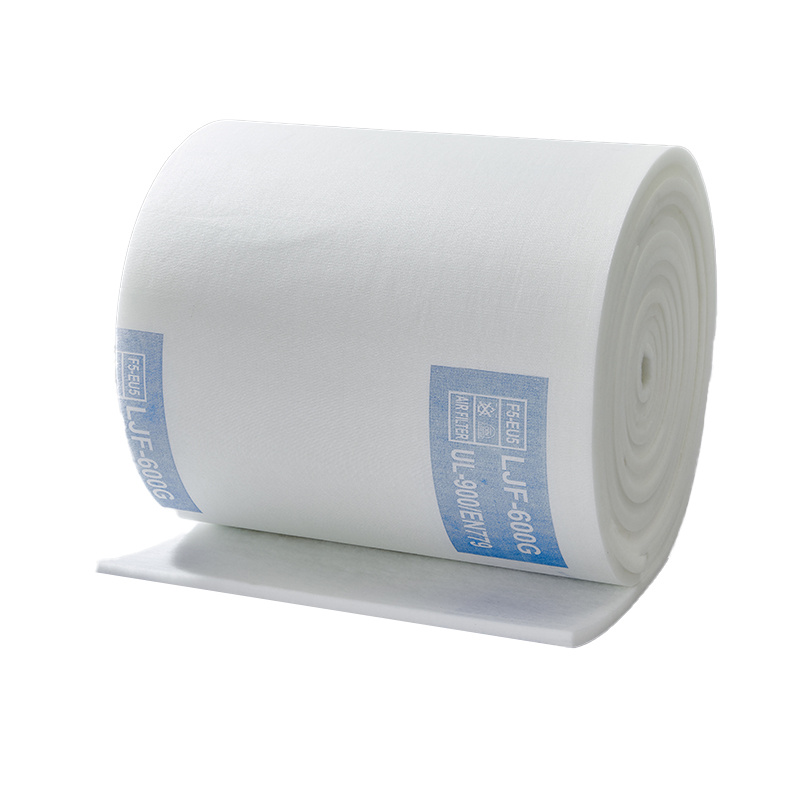

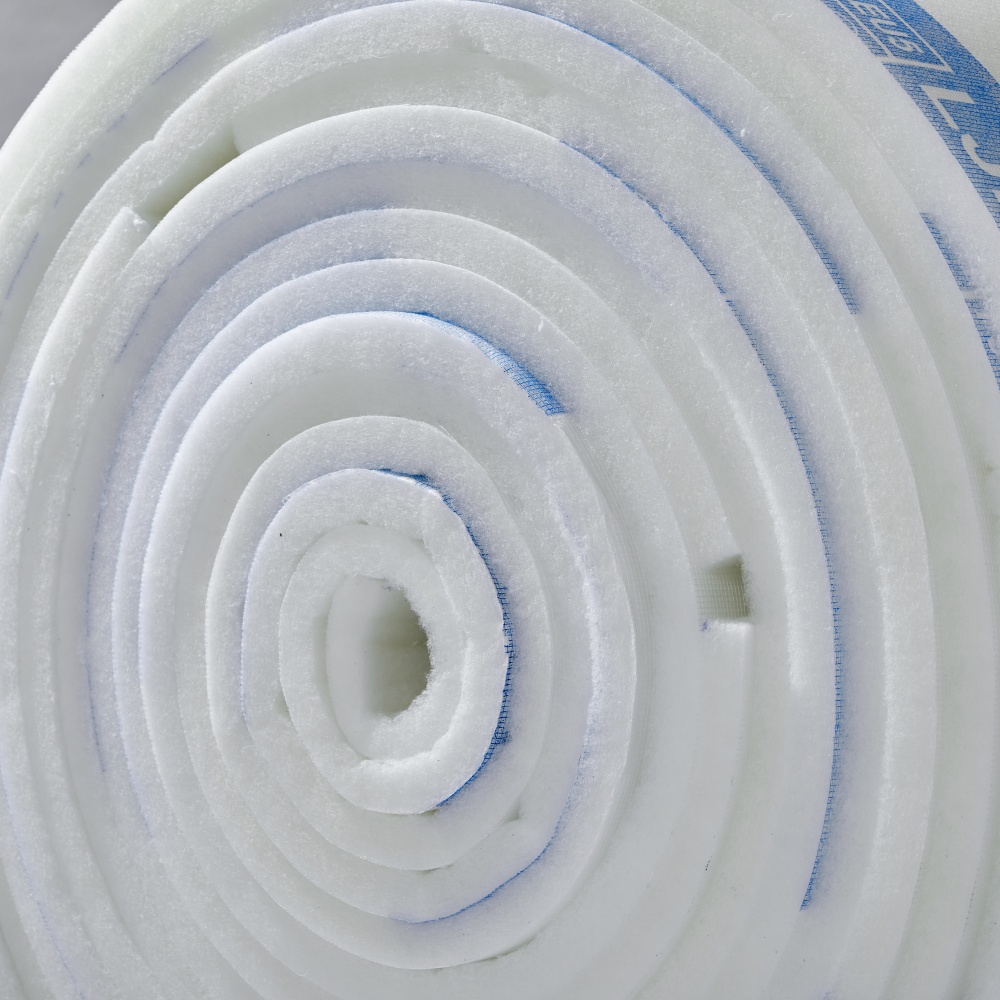

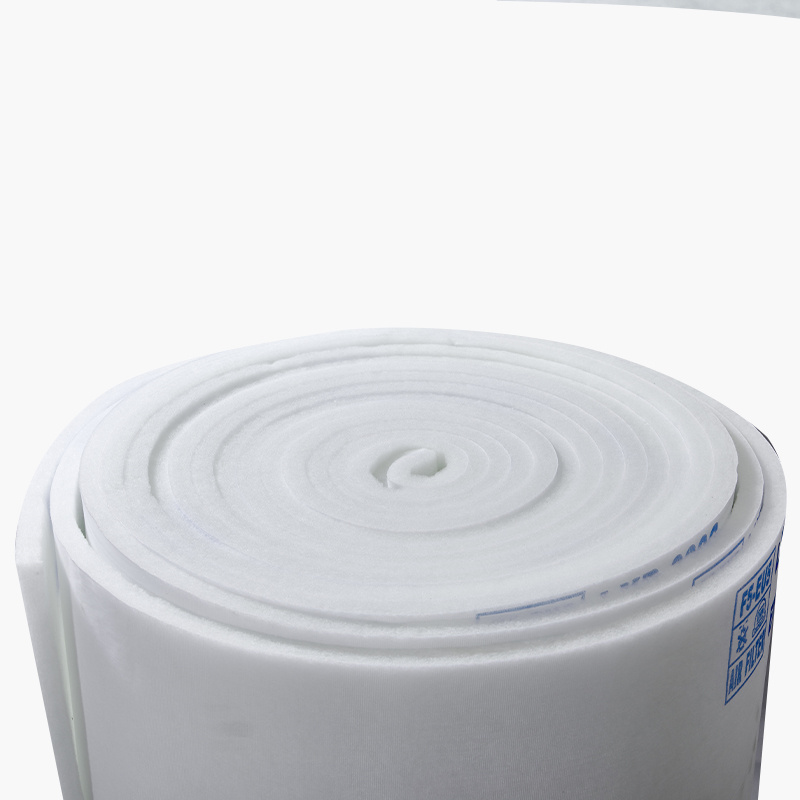

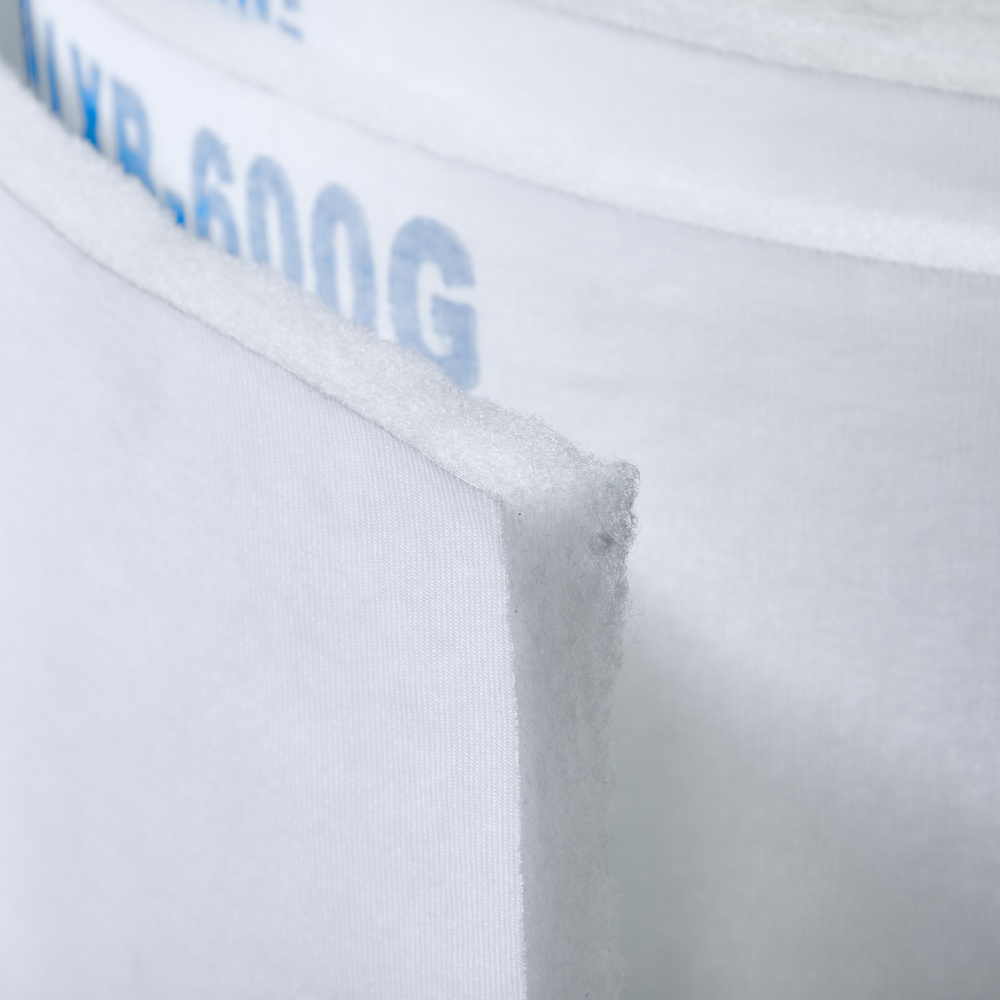

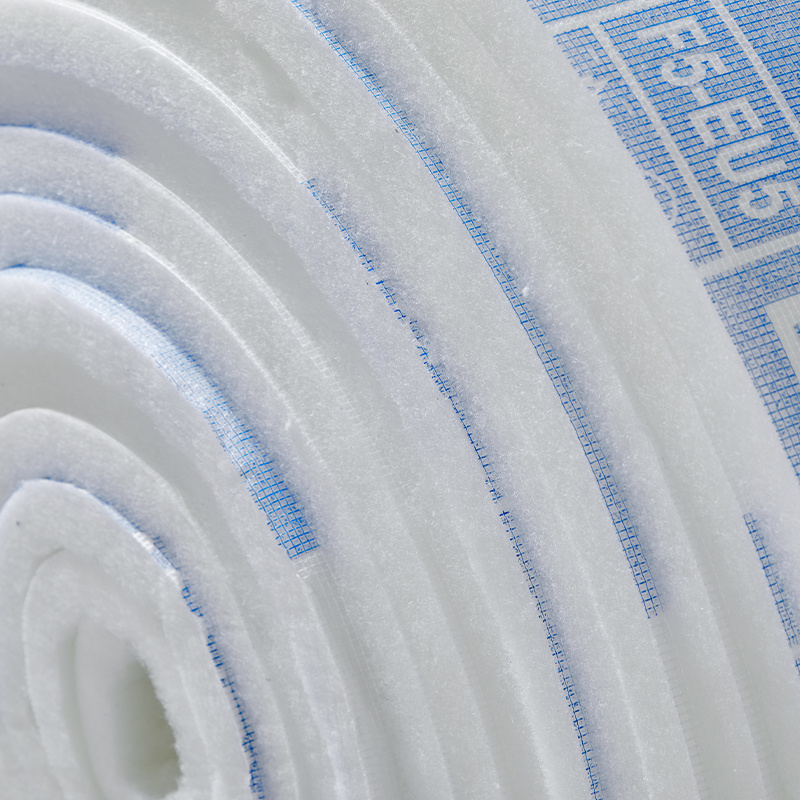

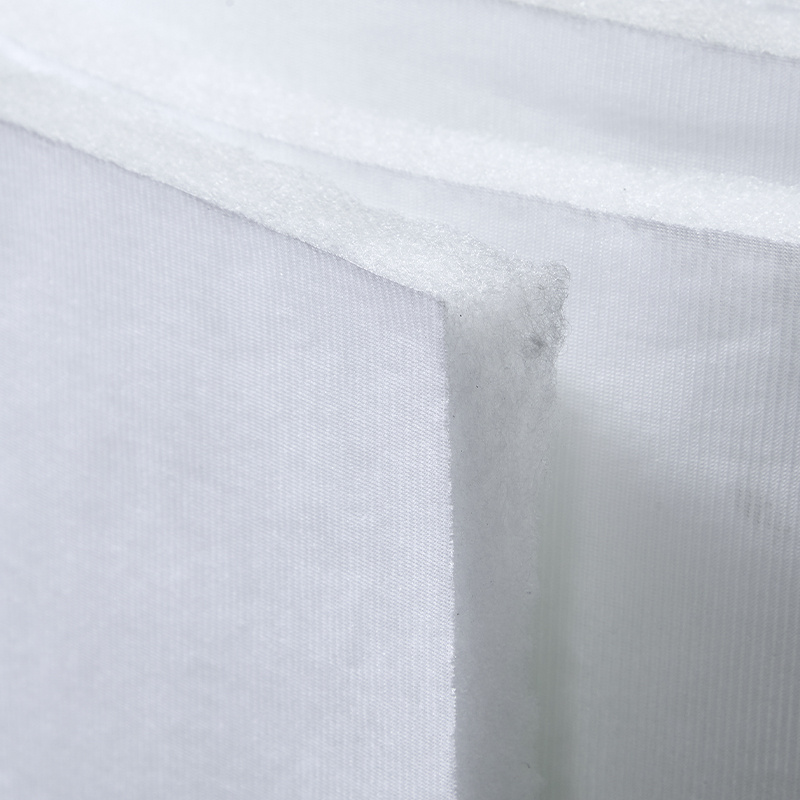

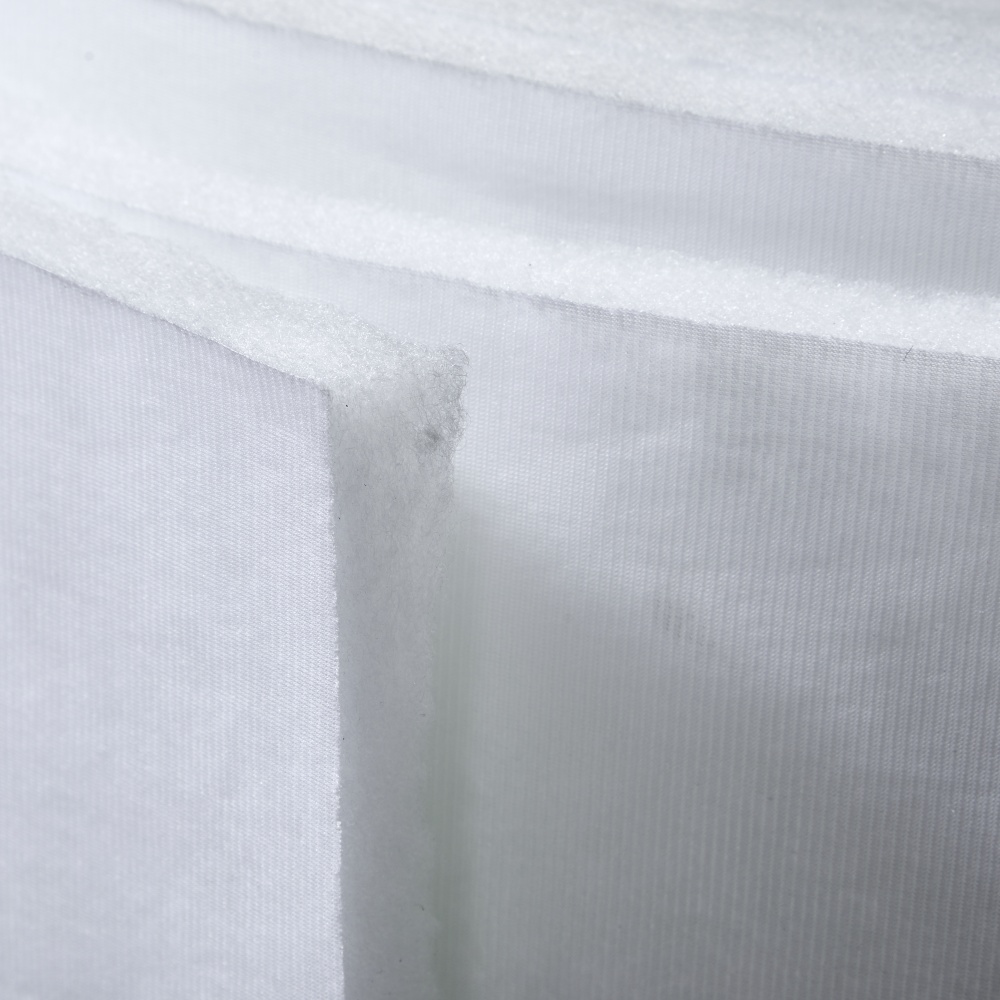

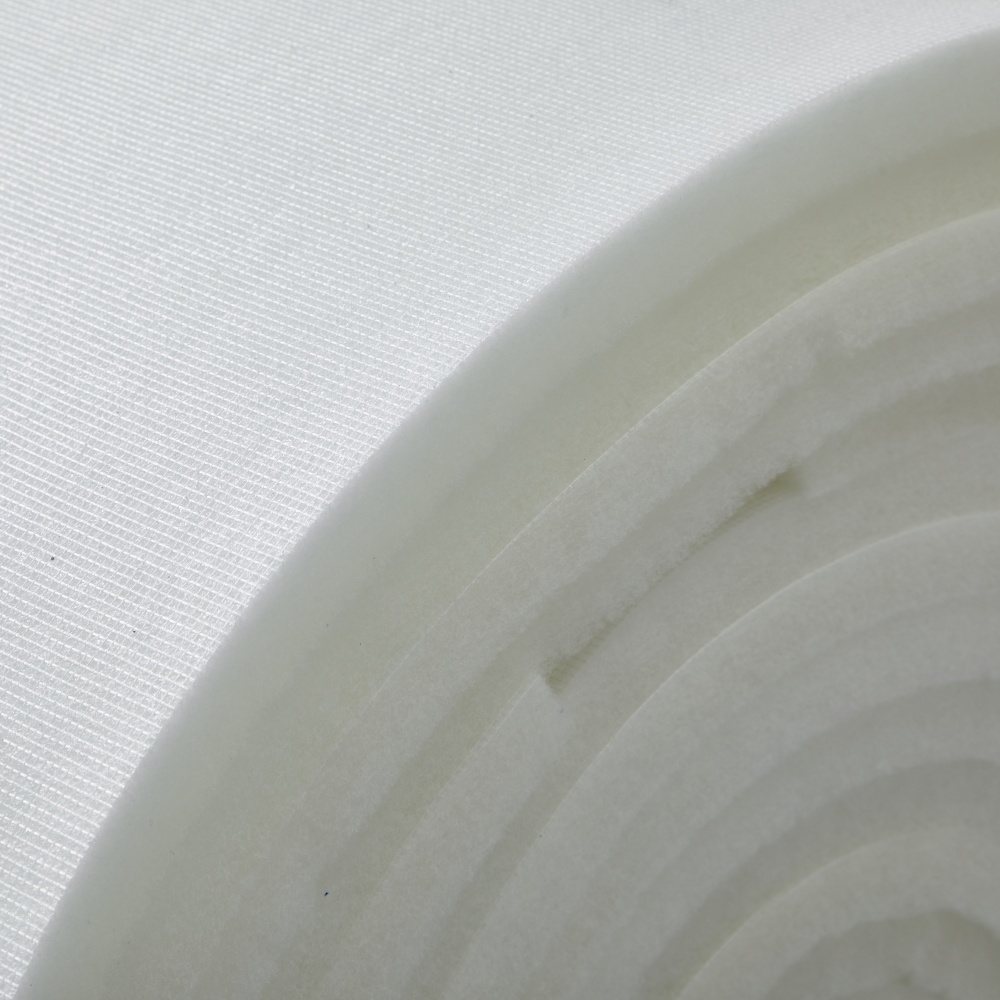

600G Spray Booth Ceiling Filter
Main Features
1. Material composition:
Made of break-resistant organic synthetic fibers to ensure durability and elasticity.
Fully impregnated media treated with adhesive prevents the passage of dust particles.

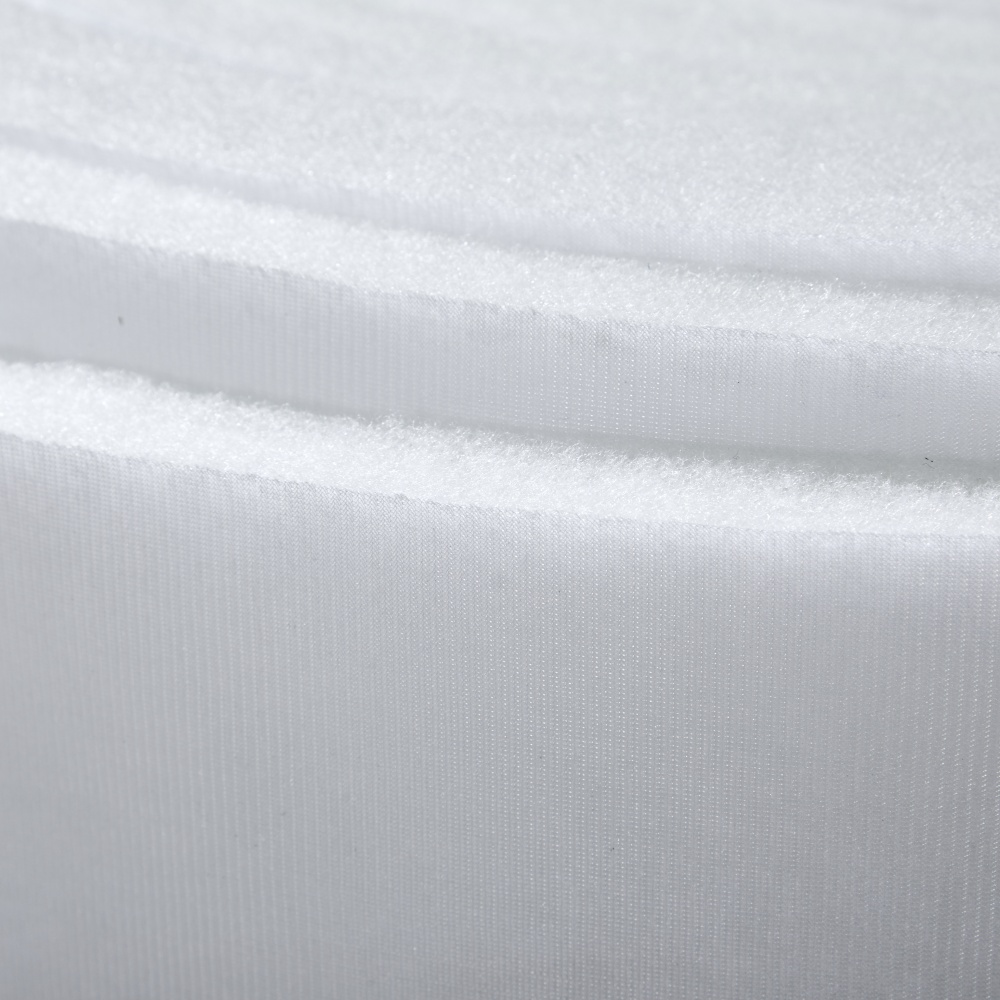

2. Progressive Structure:
The filter adopts a progressive structure, where the fiber density increases towards the clean air side, thus improving the filtration efficiency.
3. Customized options:
Customers can choose from a variety of material properties including tack, surface viscosity and dry processing to meet specific needs.
4. Compliance standards:
Complies with European DIN53438-F1 and American UL900-2 standards to ensure safety and performance.
5.High filtration efficiency:
Through glue treatment, the capture rate of dust particles larger than 10μm reaches 100%.
The filter fibers are encrypted step by step to achieve layered filtration and improve the overall filtration effect.
6. Durability and lifespan:
High dust holding capacity extends service life and reduces the need for frequent replacement.
Stable structure and uniform air permeability ensure consistent airflow and filtration performance.
7. Low resistance and elasticity:
Characterized by low initial resistance, which improves the energy efficiency of the ventilation system.
- High elasticity and wrinkle resistance increase the operational reliability of the filter.
8. Silicone Free:
The filter is silicone-free and therefore suitable for applications where silicone contamination is a concern.
application
Mainly used in final filtration systems of painting systems and spray booths.
Effective deep filtration for ventilation systems and equipment, ensuring clean air and optimal performance.
This ceiling filter is an essential component in maintaining air quality in industrial environments, providing reliable filtration and contributing to a safer work environment.

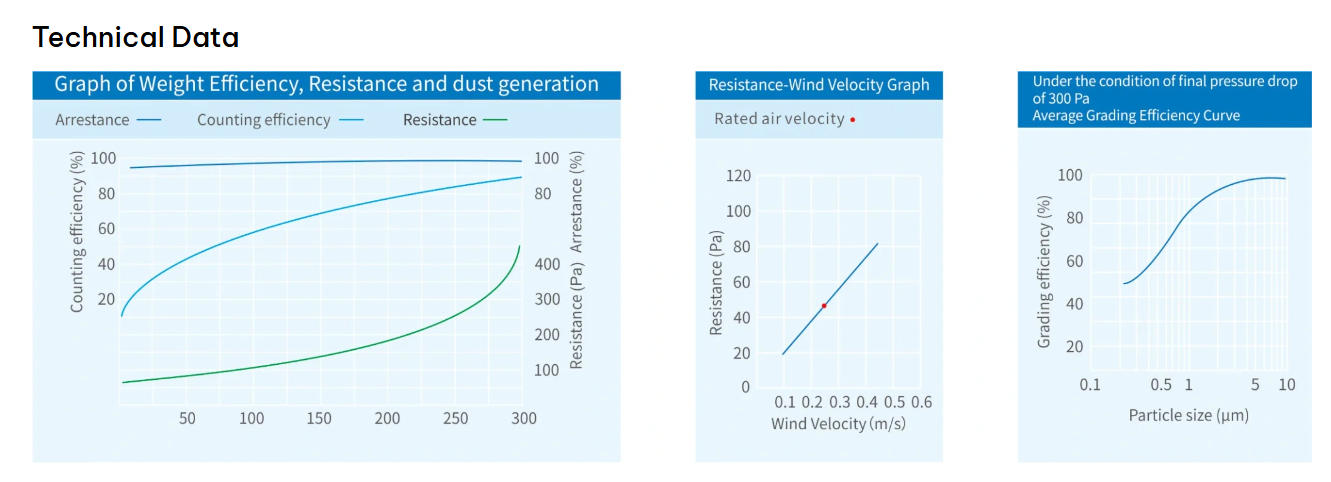

Specification
|
Model |
Filtration Class |
Average capture rate |
Thickness (mm) |
Weight(g/㎡)
|
Dust holding Capacity (g/㎡) |
Ratedair velocity(m/s) |
I.N.P (Pa) |
F.N.P(Pa) |

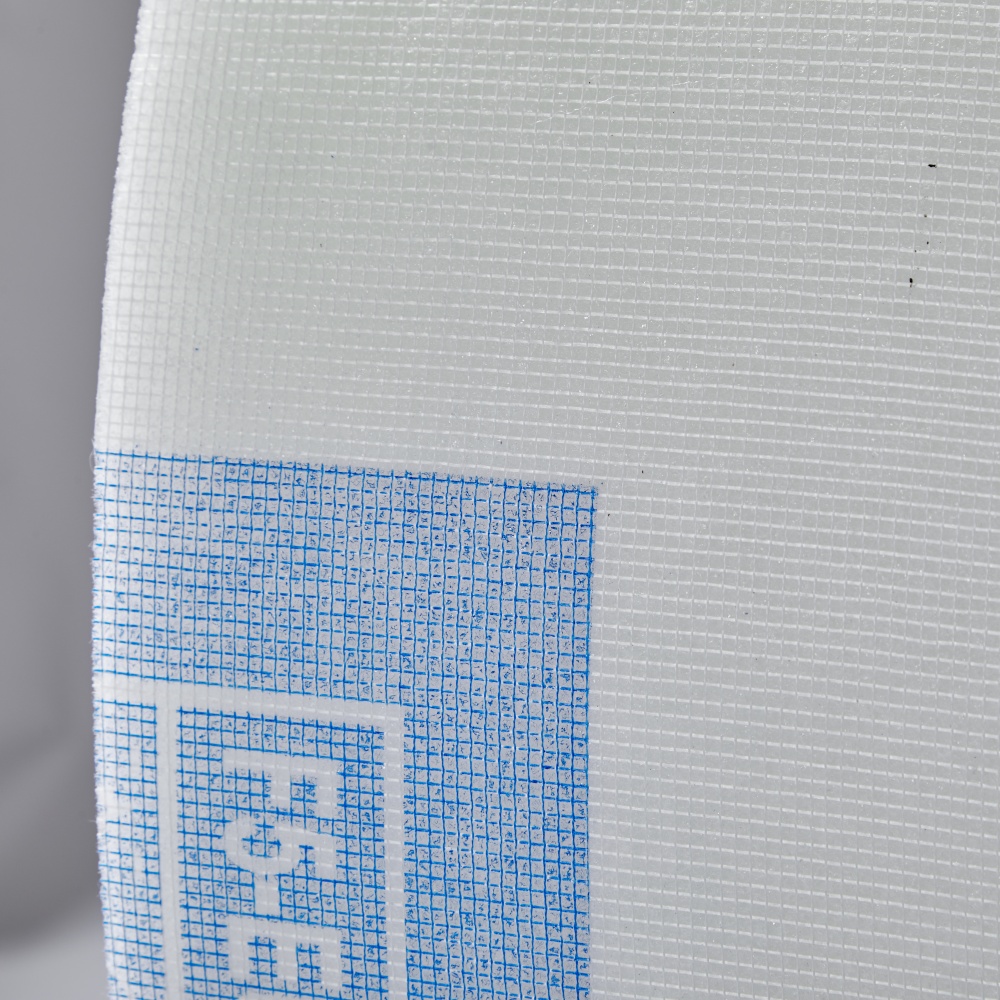

Scrim/Glue |
LJF-600G |
F5 M5 |
99% |
22±2 |
600 |
450 |
0.25 |
45 |
450 |
Full glue |
LJF-560G |
F5 M5 |
99% |
22±2 |
500 |
400 |
0.25 |
40 |
400 |
Full glue |
LJF-460G |
F5 M5 |
97% |
22±2 |
460 |
370 |
0.25 |
35 |
400 |
Surface glue |
LJF-400G |
F5 M5 |
90% |
22±2 |
260 |
350 |
0.25 |
30 |
400 |
without glue |
Roll sizes standard: 1*21m 1.6*21m 2*21m | |||||||||
Note: other specifications can be customized according to requirements. | |||||||||
