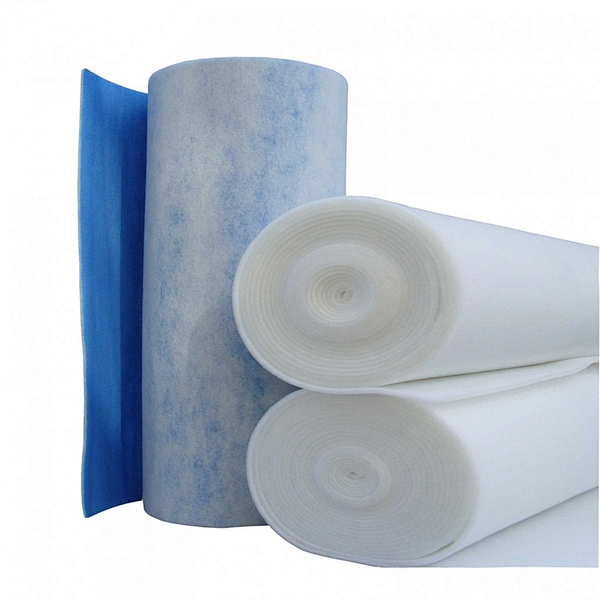

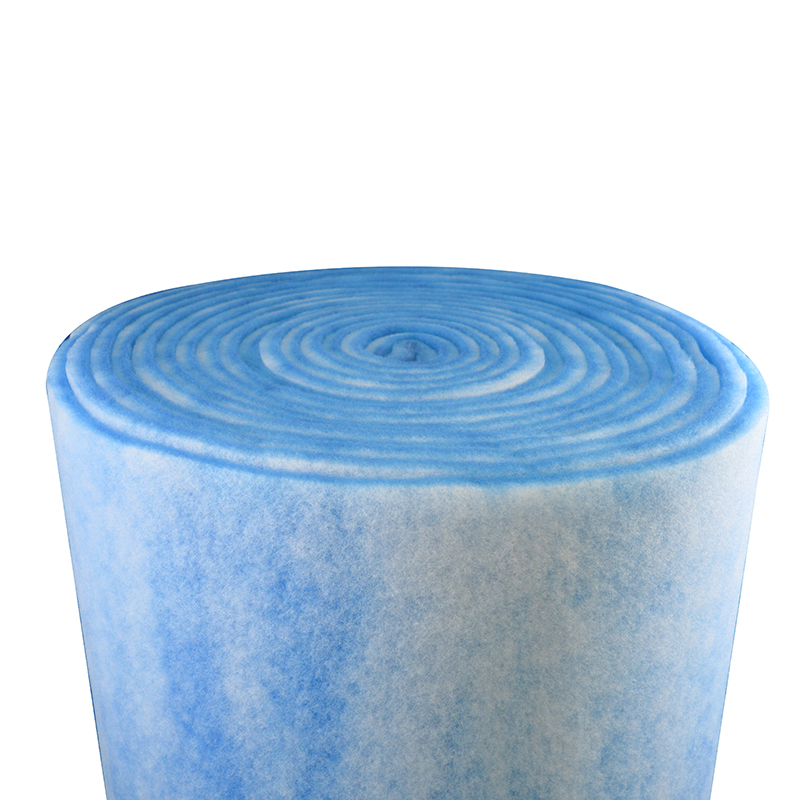

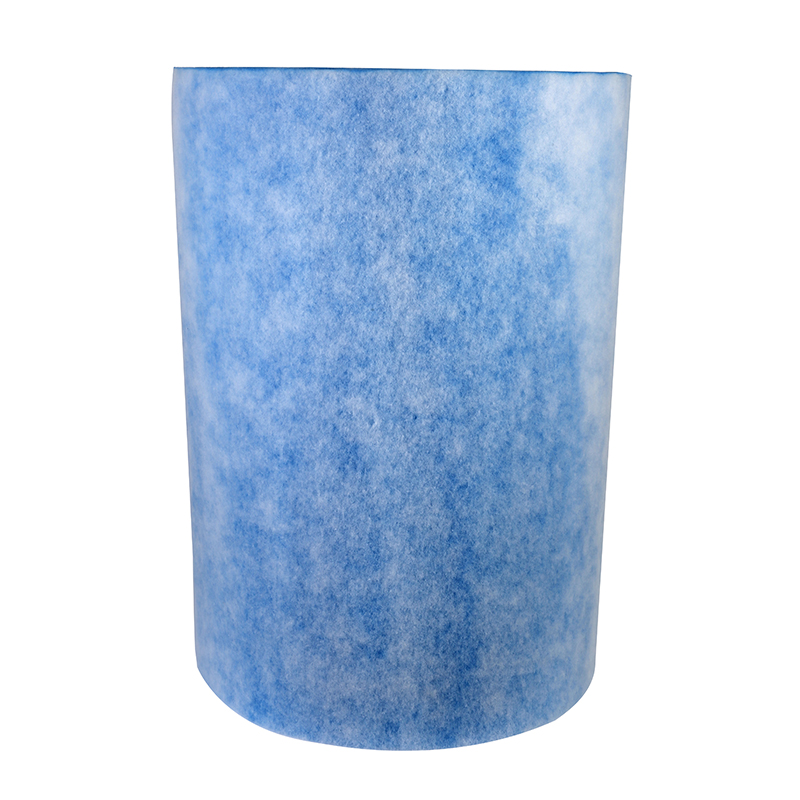

Blue-white Pre Filter Media

Blue-white Pre Filter Media is critical components in heating, ventilation and air conditioning (HVAC) systems and are the first line of defense in the air filtration process. They play a vital role in improving indoor air quality by capturing larger particles such as dust, pollen and pet dander. This prevents these contaminants from entering more advanced filtration systems, protecting more delicate and expensive downstream filters.

Product Detail

Main Benefits

Sustains the life of the main filter: By capturing larger particles, the air pre-filter helps extend the life of the main filter, reducing the frequency of replacement and lowering maintenance costs.

Improves air filtration: Ensures only purer air flows through the main filter, improving overall air quality and optimizing system performance.

Features

Filter Grade: G3, G4 and MERV 7 and 8 to meet specific air quality requirements.

Synthetic Fiber: Made from top-grade synthetic that fibers effectively retain larger particles.

-High Dust Holding Capacity: Designed to hold large amounts of dust, ensuring optimal performance and reducing the frequency of cleaning or replacement.

Minimum Airflow Resistance: Keep airflow resistance low, improving energy efficiency and reducing operating costs.

Advanced Technology: Leverage technology to help minimize energy costs associated with HVAC functions.

Long Life: With proper cleaning and vacuuming, these filters can last longer, making them a sustainable choice.

Customized: Available in a variety of media sizes and thicknesses to accommodate different dust loading applications.

Air pre-filtration media is an effective solution for improving air quality in your HVAC system, ensuring your environment remains clean and healthy while optimizing the performance of your filtration system. By investing in a high-quality air pre-filter, you can improve indoor air quality, reduce maintenance costs, and increase the overall efficiency of your HVAC system.

Specification

Model	LY-120	LY-150	LY-180	LY-221	LY-250
Material	Polyester
Thickness	5mm	10mm	15mm	20mm	22mm
Initial resistance	20pa	30pa	35pa	35pa	40pa
Final resistance	125pa	200pa	250pa	250pa	250pa
Avg.arrestance(acc.EN779)	68%	83%	86%	89%	92%
Temp.resistance	100°C
Dust holding at tested final	380g/㎡	450g/㎡	500g/㎡	550g/㎡	580g/㎡
Filtration class	G2	G3	G3	G4	G4
Weight	120	150	180	220	250
Normal size	120m 220m
Note: other specifications can be customized according to requirements.
