DPA Paint Collect Filter Media

Exceptional Filtration Efficiency: Functions as a dual-stage polyester filter, achieving a 99.84% efficiency on particles between 2.5-10 microns. It effectively captures paint mist and fine dust particles.

Superior Dust Holding Capacity: With a remarkable capacity of 28 kg/m², it ensures an extended service life and reduced change-out frequency.

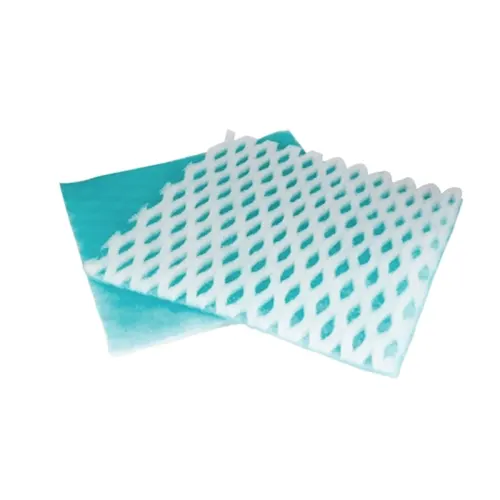

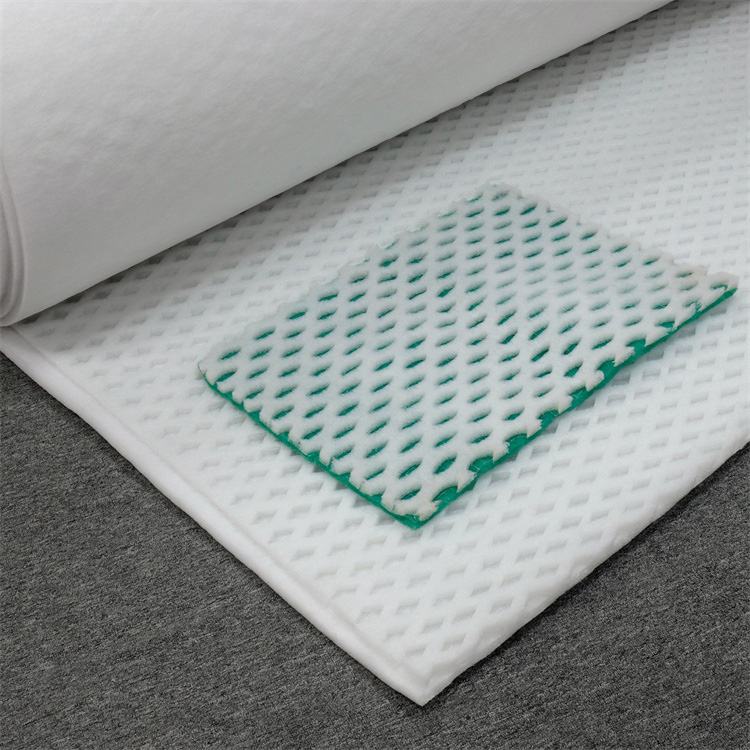

Optimized Structural Design: Features a unique diamond-shaped honeycomb perforation pattern on its surface, which dramatically increases the active filtration area for enhanced performance and lower initial resistance.

Robust Construction: Manufactured from high-tensile-strength polyester and synthetic fibers with environmental adhesives, it offers excellent resistance to moisture, corrosion, and mechanical stress.

Advanced Material Safety: Formulated without silicones and with optional fire-retardant components to meet specific safety requirements.

Environmental Contribution: By efficiently capturing overspray, it indirectly aids in reducing VOC emissions from the spray booth exhaust.

This media is constructed via a multi-layer composite process:

1、Base Layer (Coarse Fiber):Provides structural integrity for load-bearing.

2、Mid Layer (Environmental Chemical Fiber Network): Ensures stability and contributes to the gradient density.

2、Surface Layer (Fine Fiber): Features a specially punched, diamond-shaped honeycomb design for primary filtration and maximum surface area utilization.

The primary raw materials are polyester fiber and high-strength synthetic fiber, bonded with eco-friendly adhesives.

1、Automotive & General Painting: Paint booths, automotive refinishing

2、Woodworking & Furniture Manufacturing: Wood painting, UV coating lines
3、Metal Fabrication: Metal surface coating, powder spraying
4、Electronics Industry:Product coating, anti-static spraying processes
5、Plastics & General Manufacturing: Painting of plastic components
6、Architectural & Artistic Coating
7、General Industrial Air Filtration
