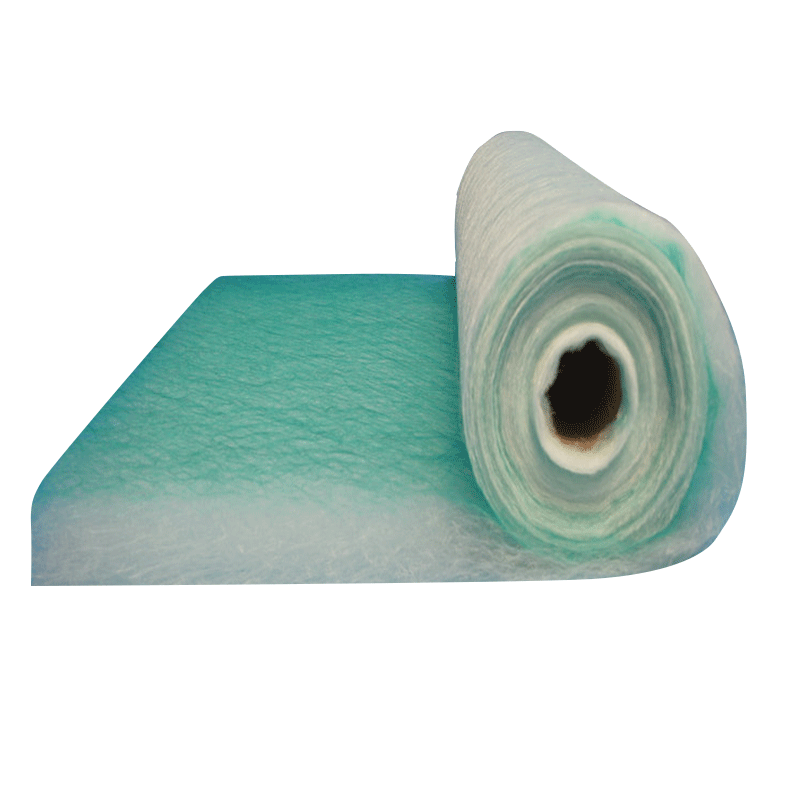

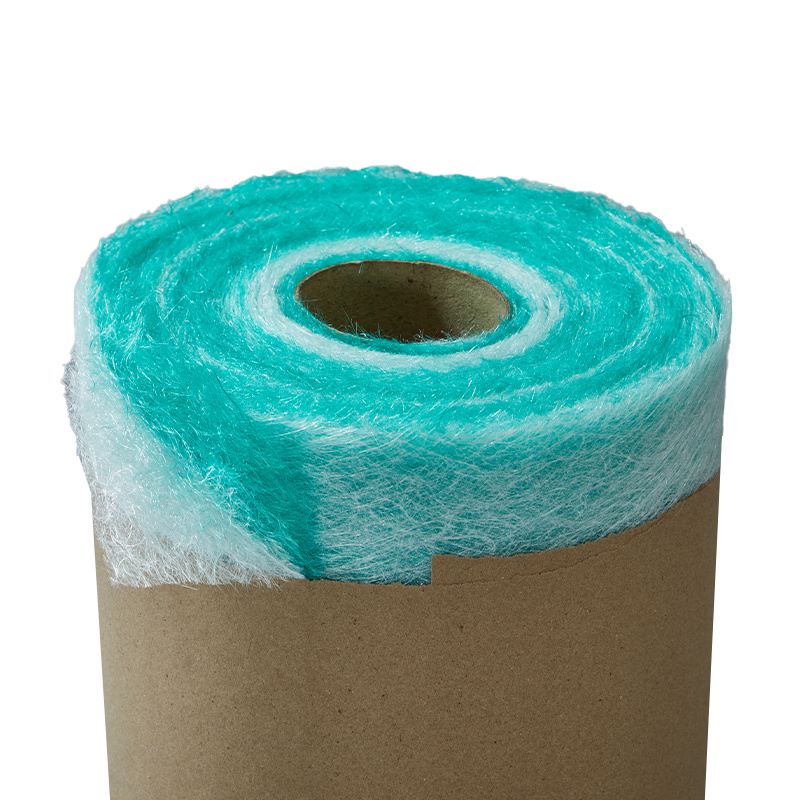

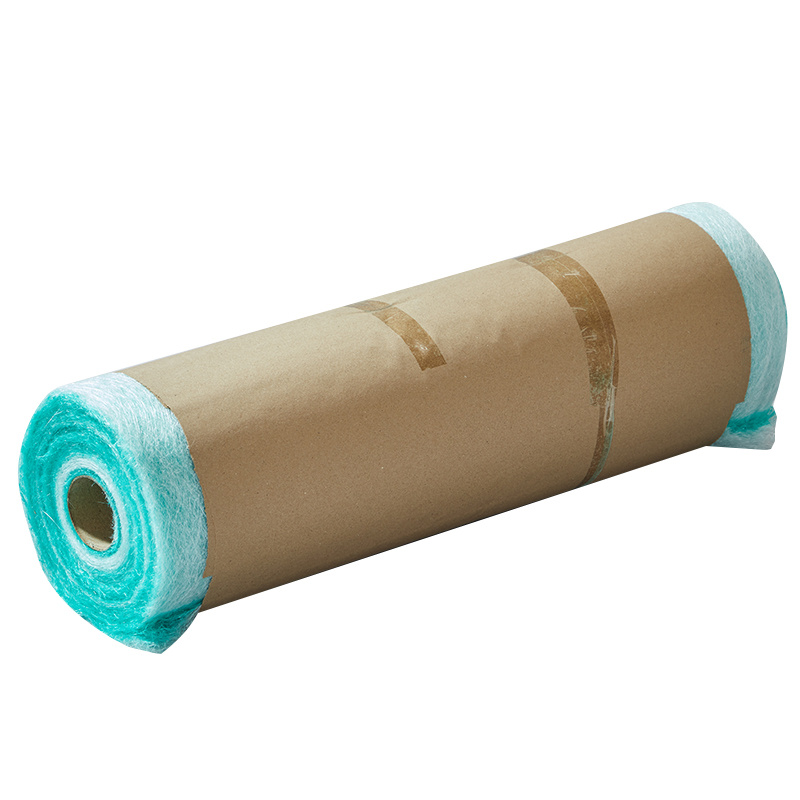

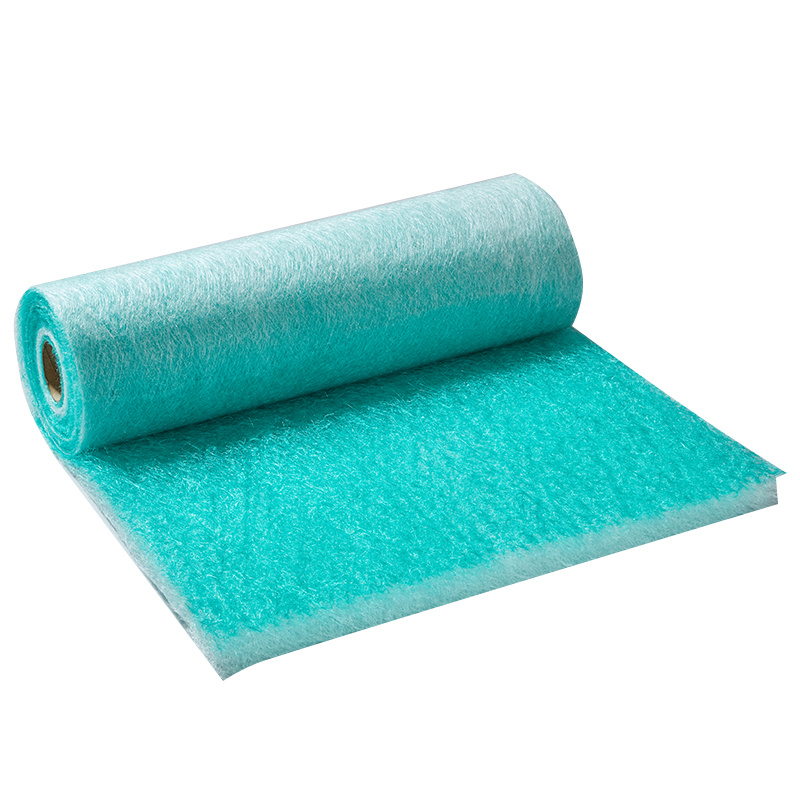

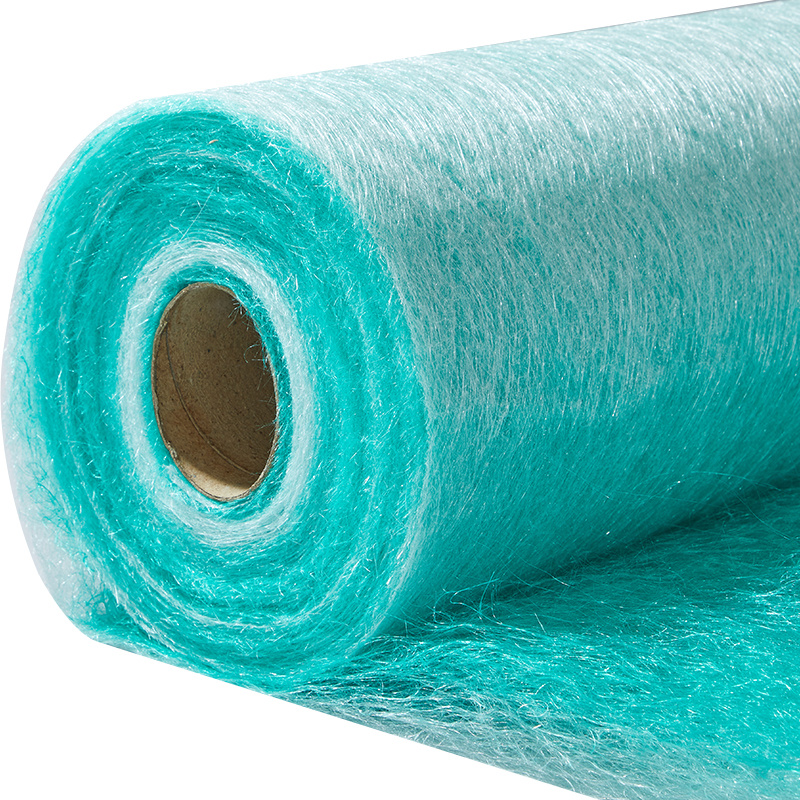

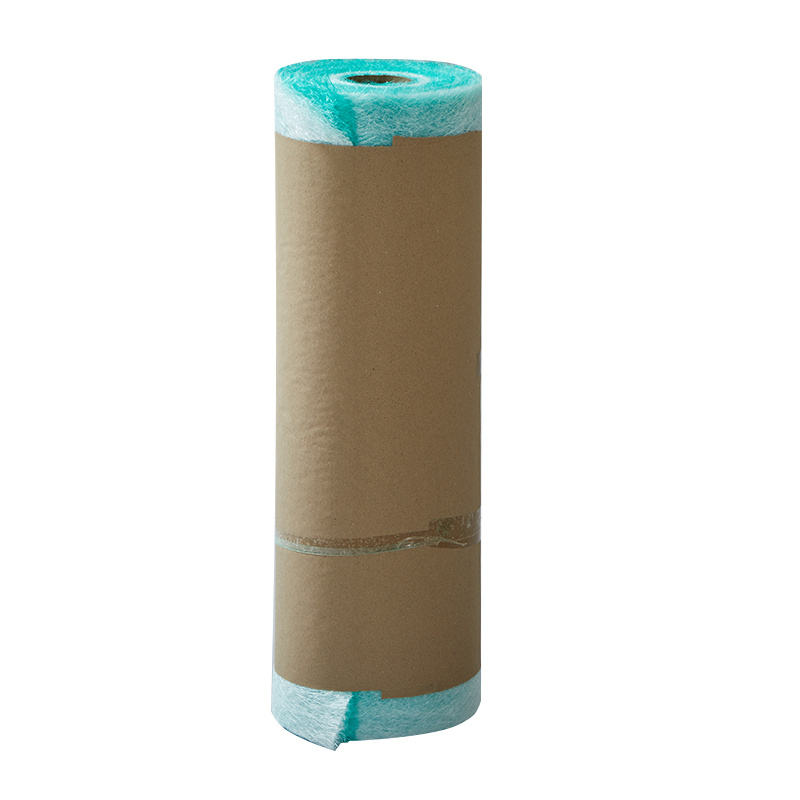

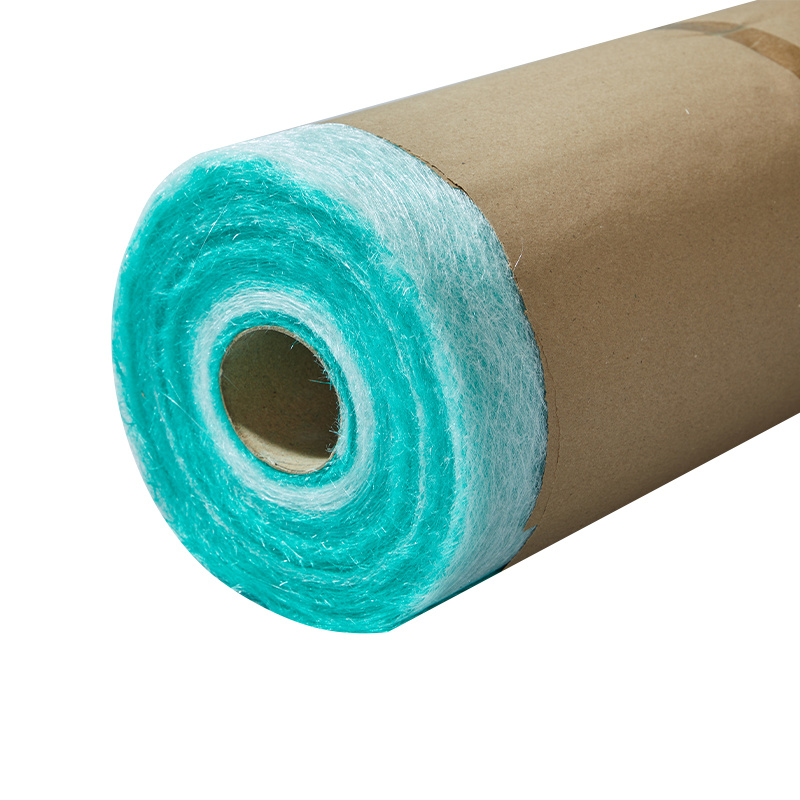

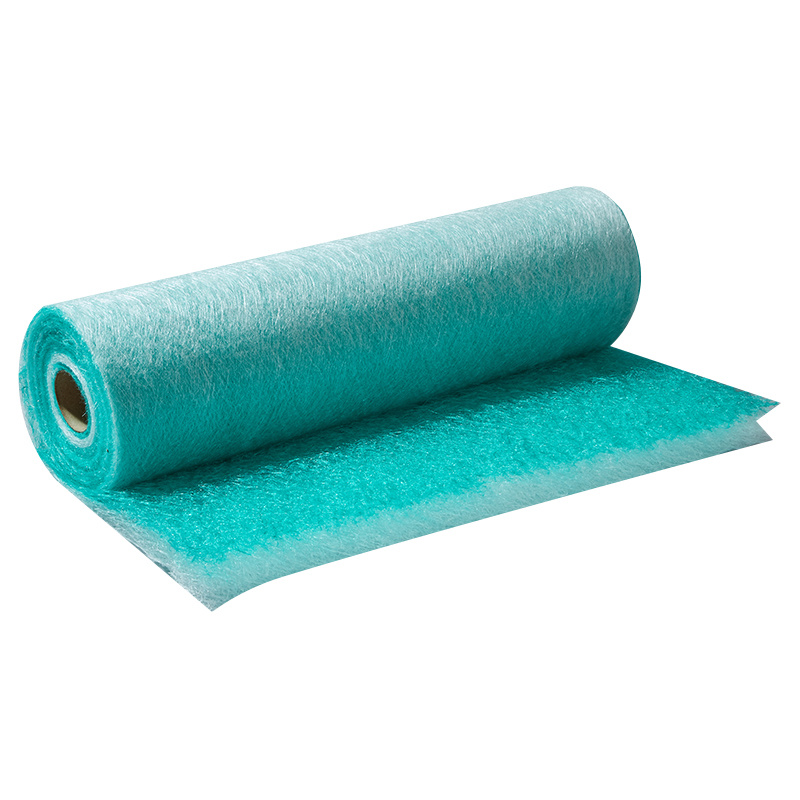

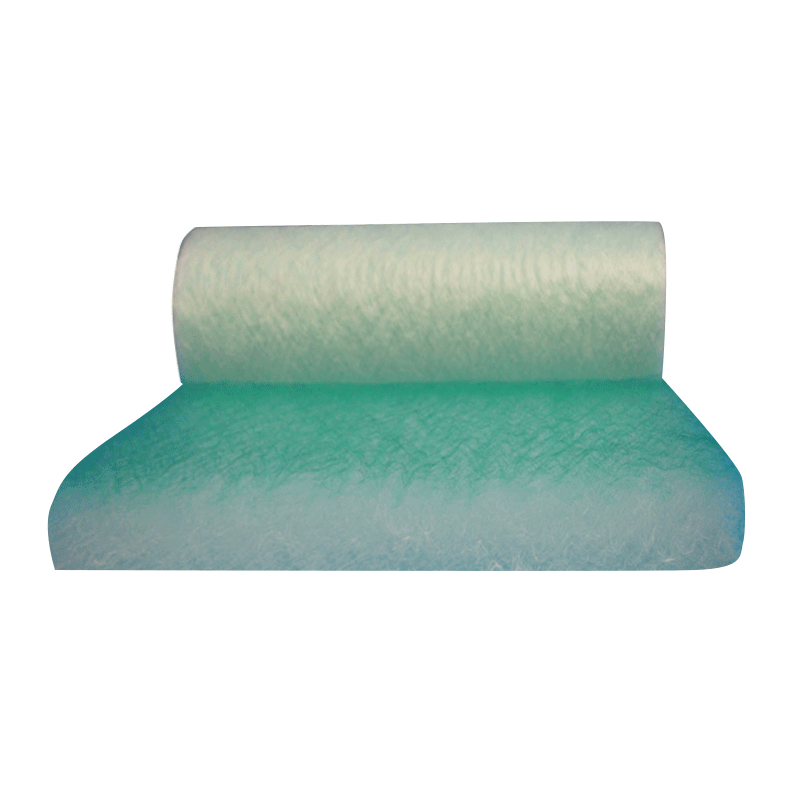

Fiberglass Paint Stop Filter Roll

1.Made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.
2.It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching, specially , PA-50/60/PA-100 is suitable for using heat recovery system

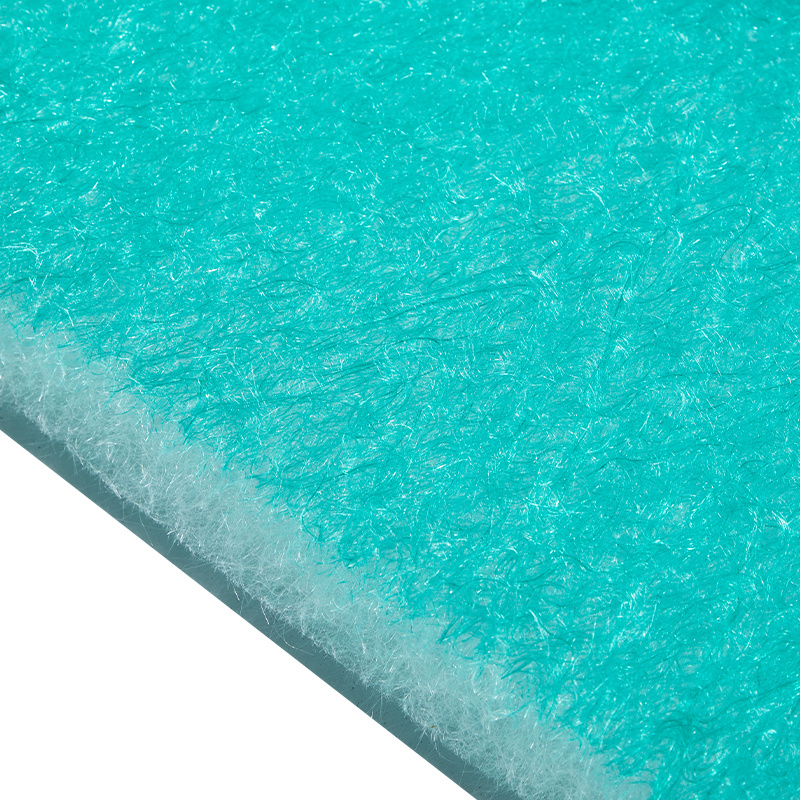

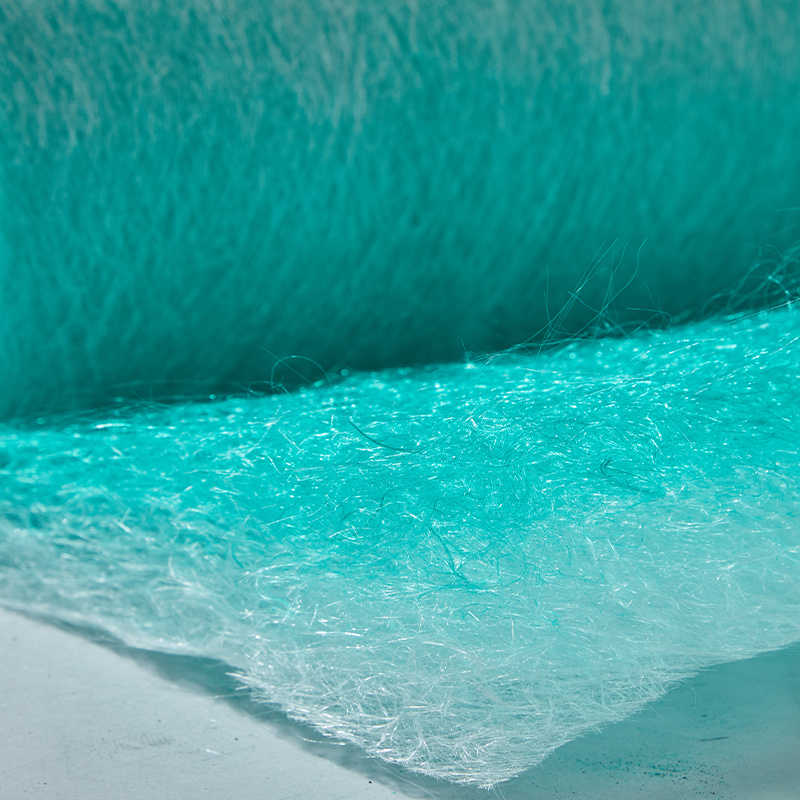

3.High strength fiberglass increasing structure; the windward side is green ,the leeward side is white.
4.The low compression performance maintains its outlook,which is completely useful for the filtration fibre to keep the oil mist and the dust.
5.Nonflammability, heat resistance 170℃.
6.The compression packing may save the fare and the storage space in the transportation. After decompression, it will regain its original condition.
7.Outer frame may choose the paper frame , the galvanization iron frame, or aluminium alloy frame.

Product Detail

Application

It is mainly used in the discharge filtration of paint mist or industrial oil mist from painting systems or pre-filtration of general ventilation.

Features

1.Step by step encryption of filter fibers and stratified filtration.

2.High dust holding and long service life.

3.air outlet surface with film treatment, stable structure, not easy to drop chips.

4.Strong absorptive power for paint mist and oil mist.

5.Excellent moisture-proof, elasticity, acid and alkali resistance, and high-temperature resistance.

Technical Parameters

Main Material	Fiberglass fiber
Filtration class	G2,G3,G4(EN779)、EU3(EUROVENT)、MERV 5 6
Final resistance	200Pa(suggestion)
Average weight efficiency	PA-50/60≥90%、PA-75≥95%、PA-100≥98%
Flammability rating	F1(DIN 53438) B1(GBT 17591-2006)
Filter object	Paint mist, oil mist, dust particles
Color	Green-white/Blue-white/yellow-white/pink-white
Temperature resistance	200°C
Temp. short peak	250C
Moisture resistance(relative humidity)	100%
