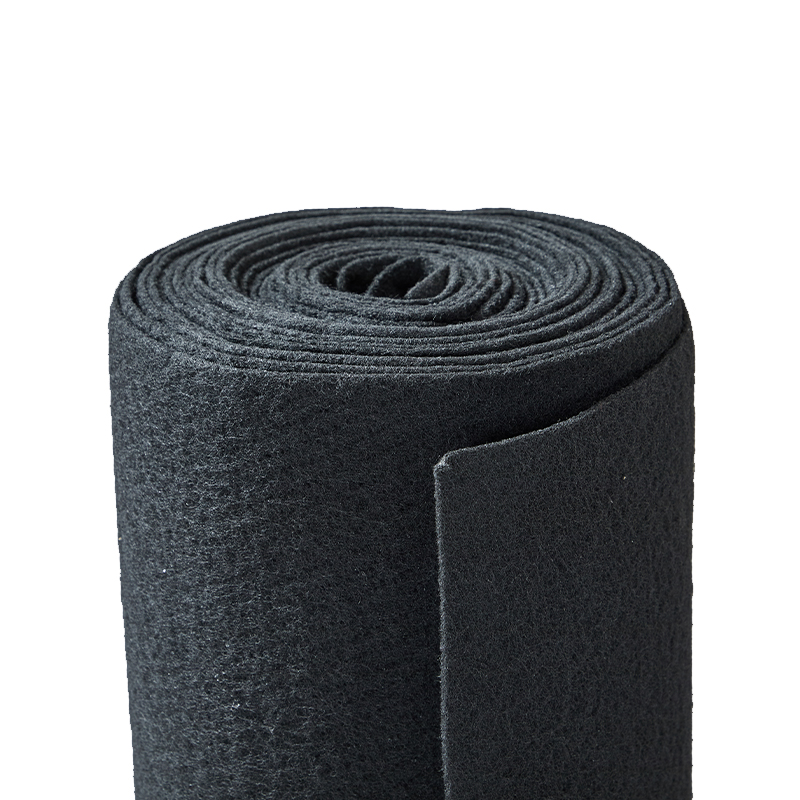

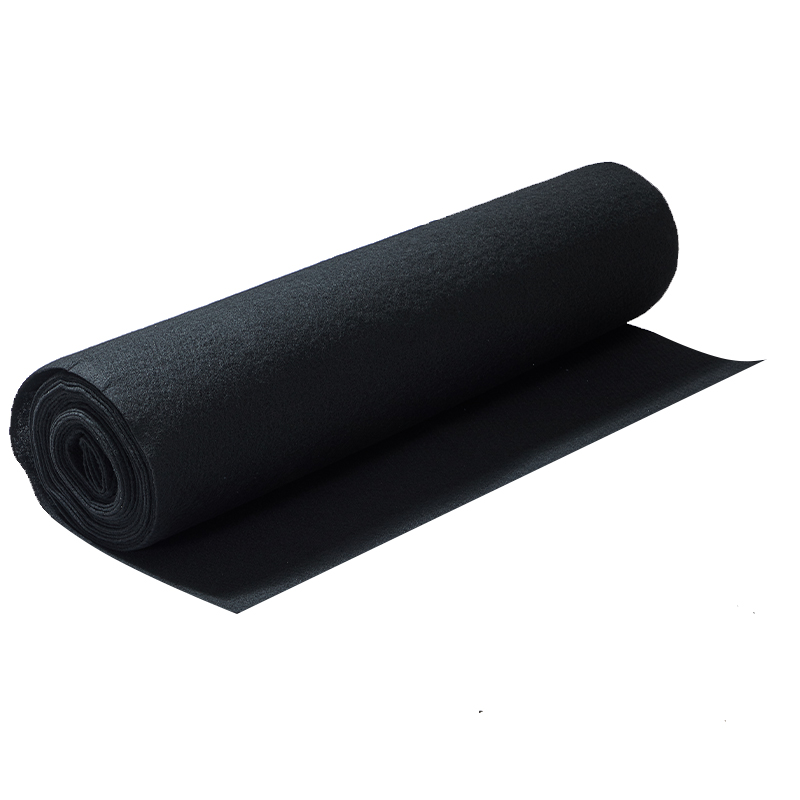

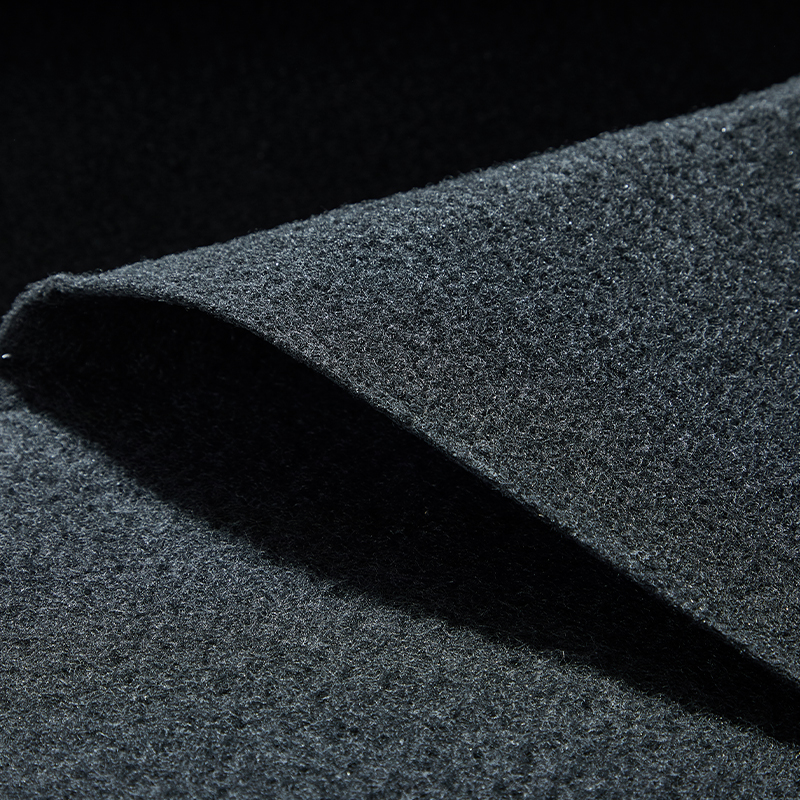

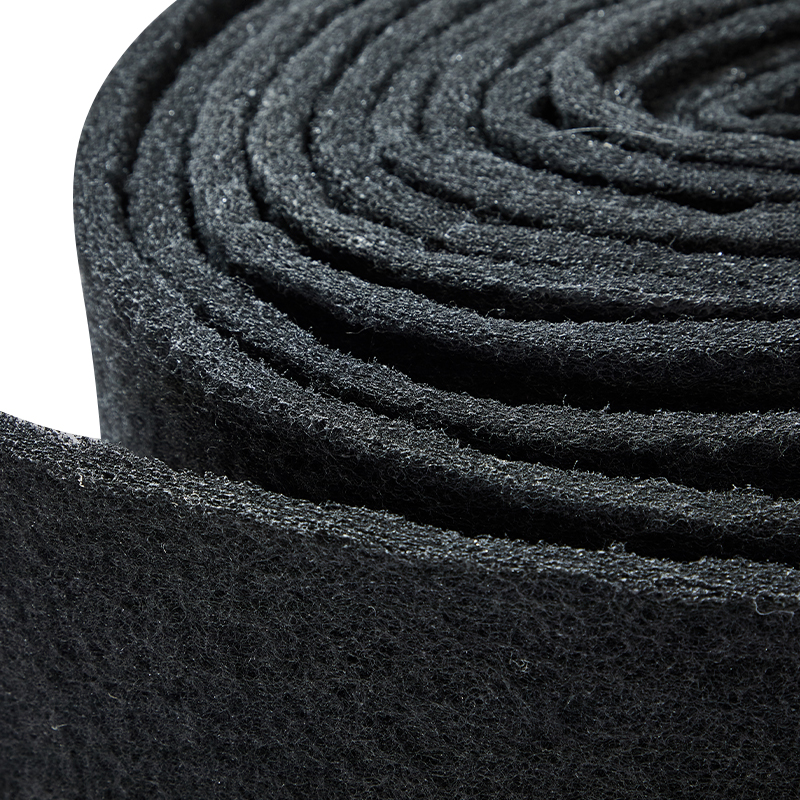

Activated carbon filter media
Main Features
High Quality Catalytic Powdered Activated Carbon: The filter media is made of premium activated carbon, known for its excellent adsorption properties to capture a wide range of airborne pollutants.
Multiple Applications
This activated carbon filter media can be produced in various shapes and sizes, suitable for different types of air conditioner purifiers, including panel filters, bag filters, etc.
Effective Odor Removal
Specially formulated to eliminate unpleasant odors and harmful gases, including:
1:Benzene
2:Methanol
3:Ammonia
4:Carbon dioxide
5:Nitrogen dioxide (NO₂)
6:Sulfur dioxide (SO₂)
Improves Indoor Air Quality: By removing these harmful substances, activated carbon filter media helps create a healthier indoor environment and improves overall air quality.
Customizable Options: Available in a variety of configurations to meet specific application requirements, ensuring optimal performance in different HVAC systems.
Activated carbon filter media is an effective solution to air quality issues, providing reliable filtration of a wide range of harmful substances and odors. Its versatility and high-quality construction make it an ideal choice for enhancing the performance of HVAC systems in a variety of environments..
Specification
| Model |
LY-HT-3 |
LY-HT-5 |
LY-HT-10 |
LY-HT-15 |
LY-HT-20 |
| Material |
Polyester+Carbon |
||||
| Thickness |
5mm |
10mm |
15mm |
20mm |
22mm |
| Initial resistance |
20pa |
30pa |
35pa |
35pa |
40pa |
| Final resistance |
125pa |
200pa |
250pa |
250pa |
250pa |
| Avg.arrestance(acc.EN779) |
68% |
83% |
86% |
89% |
92% |
| Temp.resistance |
100°C |
||||
| Dust holding at tested final |
380g/㎡ |
450g/㎡ |
500g/㎡ |
550g/㎡ |
580g/㎡ |
| Filtration class |
G2 |
G3 |
G3 |
G4 |
G4 |
| Weight |
120 |
150 |
180 |
220 |
250 |
| Normal size |
1*20m 2*20m |
||||
| Note: Other specifications may be subject to customisation in accordance with customer requirements. | |||||
