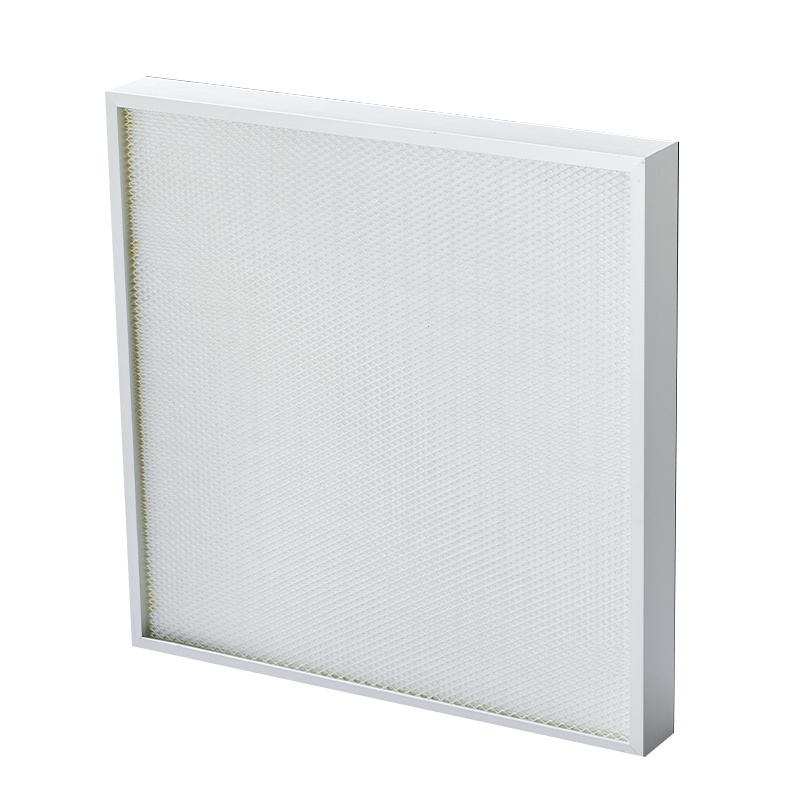

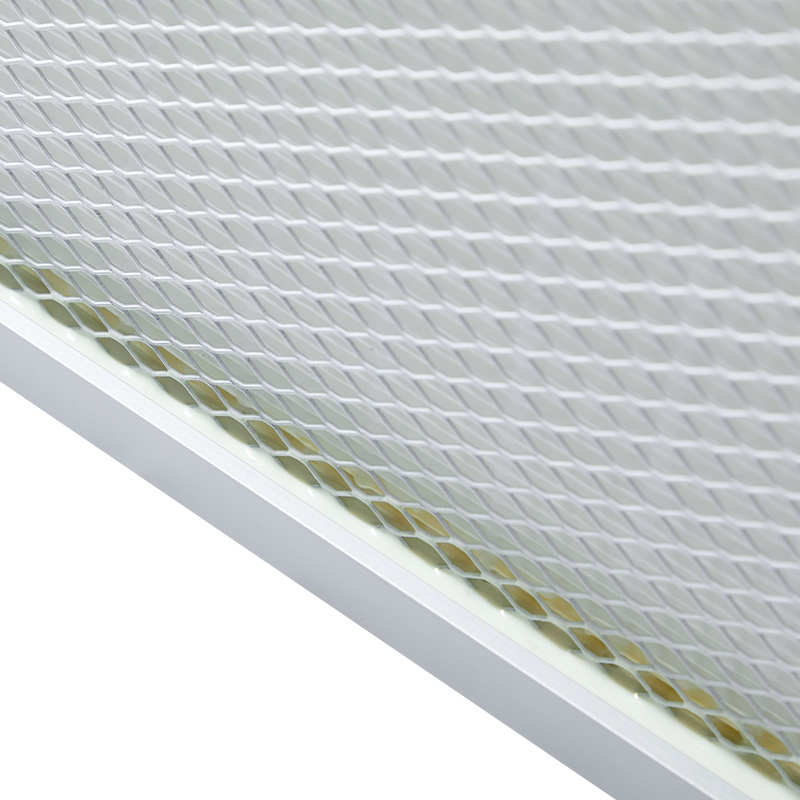

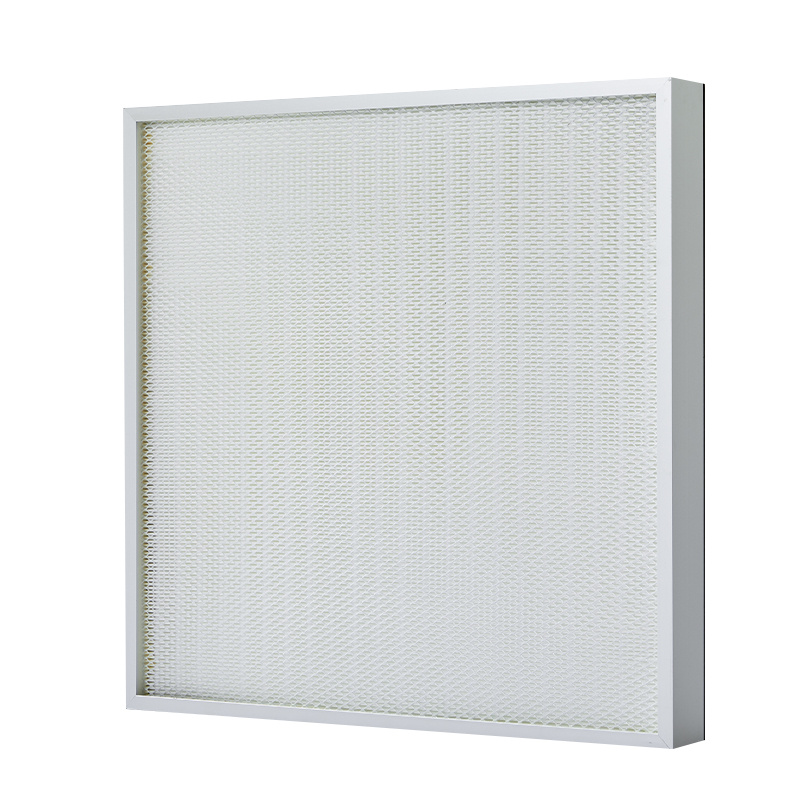

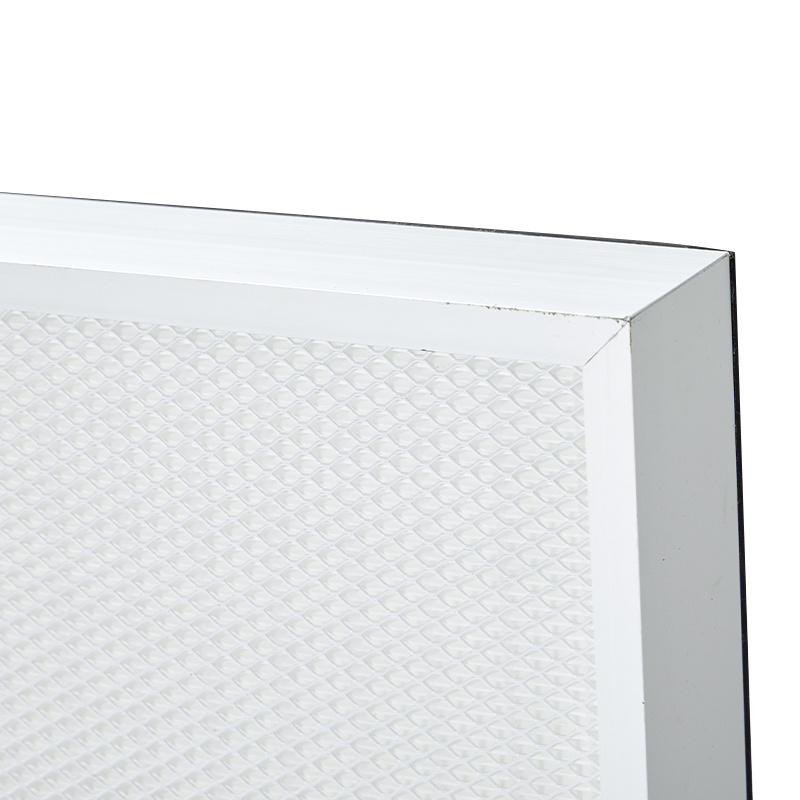

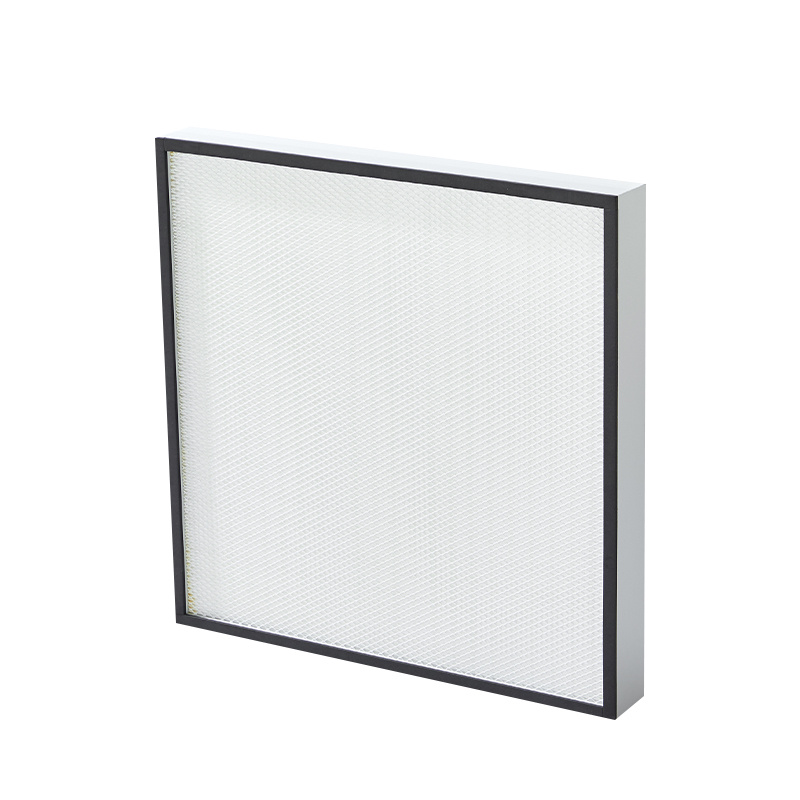

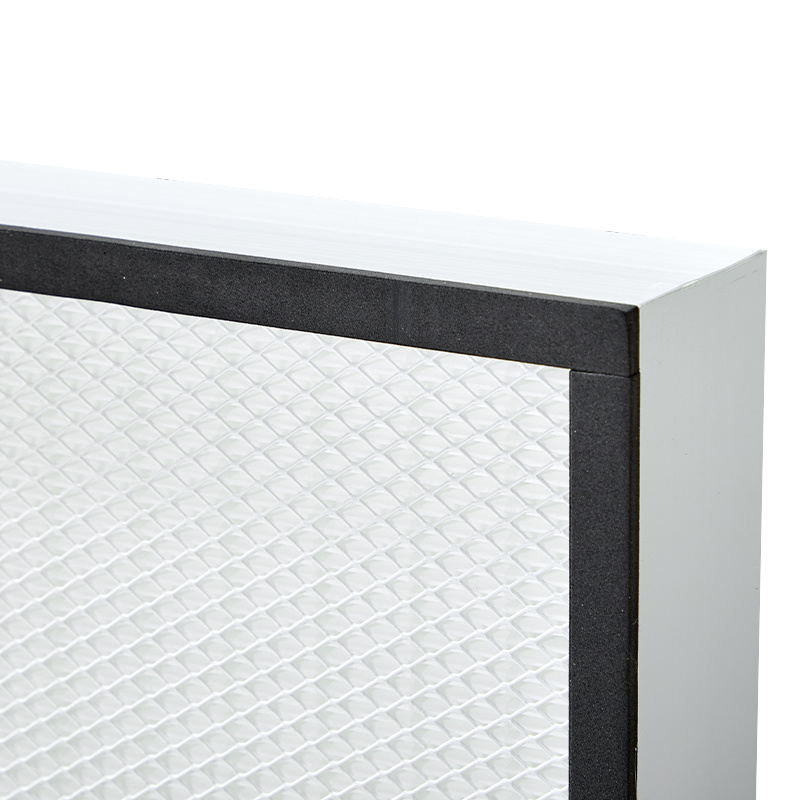

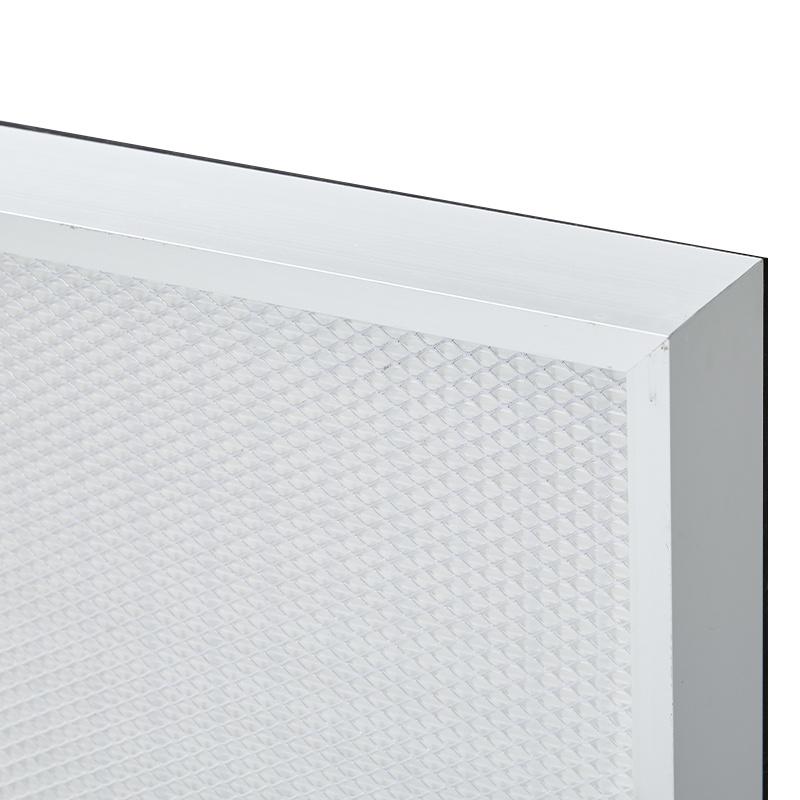

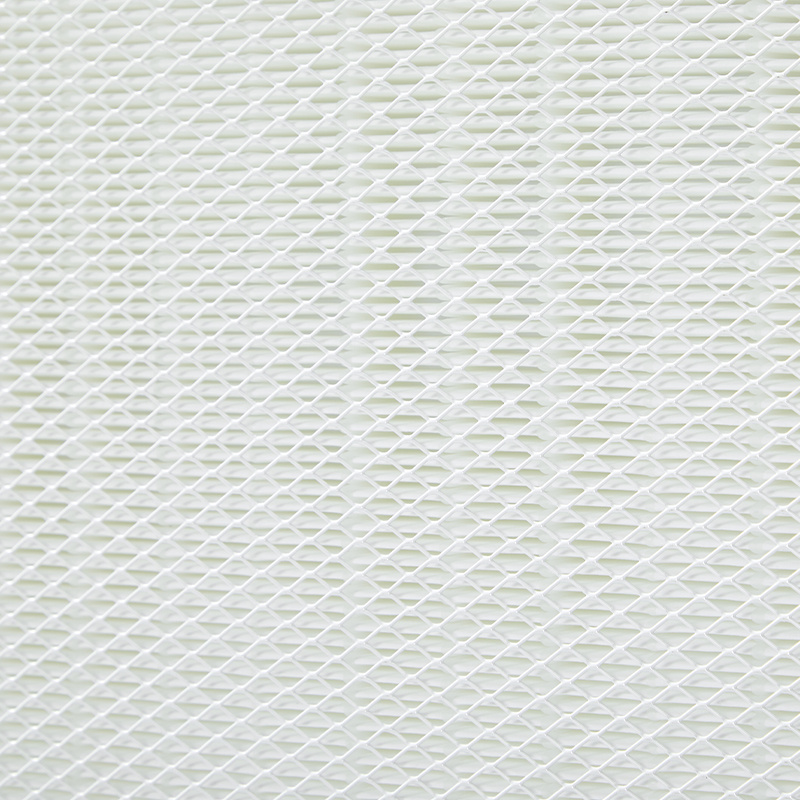

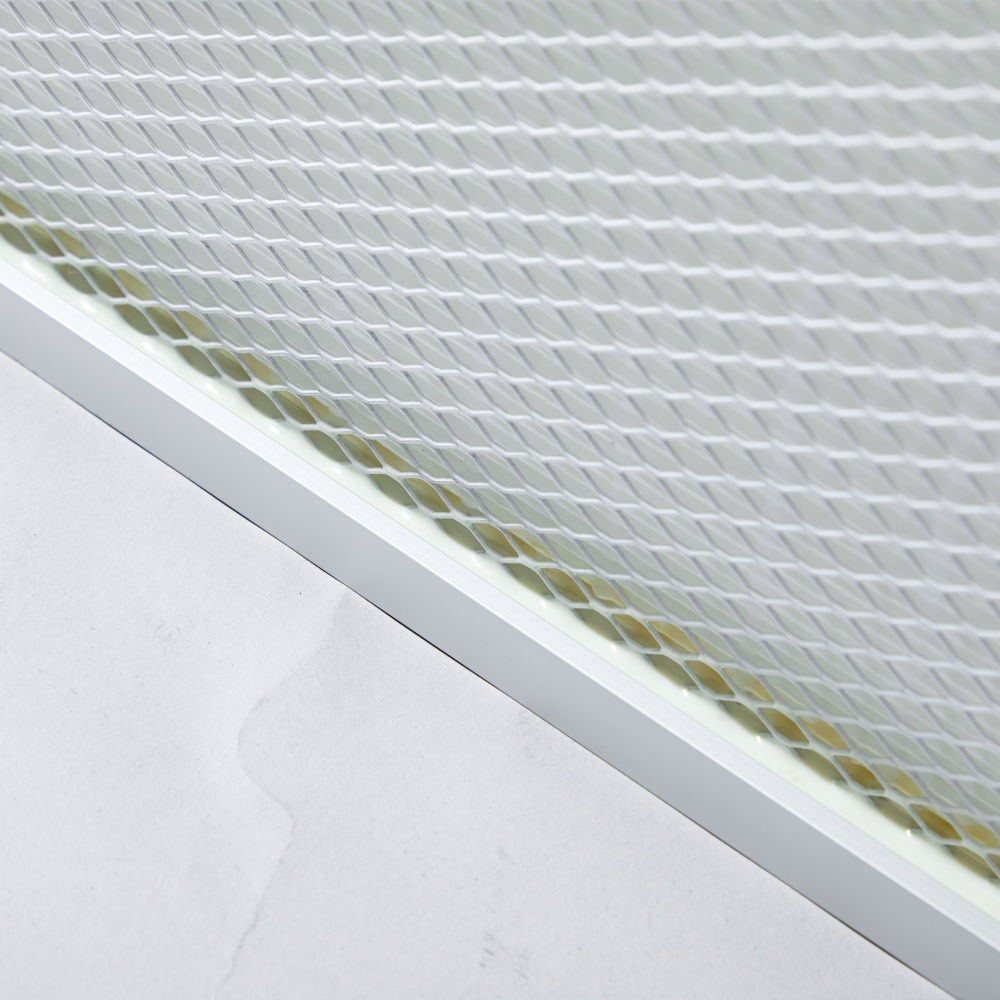

H13 Mini Pleated HEPA Filter
Main Features
1. Large specific surface area:
The mini-pleat design provides a larger dust collecting surface area, enhancing the filter's overall dust collecting capacity.
2. Even pleat spacing:
Ensures consistent airflow and filtration efficiency across the entire filter surface, preventing airflow restriction.
3. Stable airflow:
Designed to maintain steady airflow, essential for the efficient operation of ventilation and air distribution systems.
4.High filtration efficiency:
Capable of capturing a large number of airborne particles, including dust, pollen and other pollutants, ensuring clean air output.
5. Low resistance:
Designed to provide low airflow resistance, improving energy efficiency and reducing operating costs.
6.High temperature resistance:
Withstands temperatures up to 80°C, ensuring reliable performance in a variety of applications.
7. Moisture resistance:
Designed to operate effectively in environments with relative humidity up to 100% RH, with the flexibility to adapt to different conditions.
application
Ventilation Equipment: Ideal for use in HVAC systems where high cleanliness levels are required.
Dust Removal Equipment: Effectively captures fine dust particles in industrial environments.
Air Supply Systems: For applications requiring clean air, such as laboratories, clean rooms and medical facilities.
An essential component for maintaining high air quality standards in environments where cleanliness is critical, this mini-pleated HEPA filter provides reliable filtration and contributes to a healthier environment.
Specification
Model |
Outside size W*H*D(mm) |
Rated air flow(m³/h) |
Dust holding capacity(g) |
I.N.P(Pa) |
F.N.P(Pa) Recommended |
|
LY-M-H
|
1220*610*100 |
2600 |
1600 |
≤220pa |
99.999%@0.3μm |
915*610*90 |
1900 |
1200 |
|||
610*610*80 |
1300 |
800 |
|||
915*610*69 |
1500 |
950 |
|||
610*610*69 |
1000 |
700 |
|||
915*610*50 |
1100 |
750 |
|||
610*610*50 |
700 |
450 |
|||
Note: Special Size Available Upon Request. | |||||
