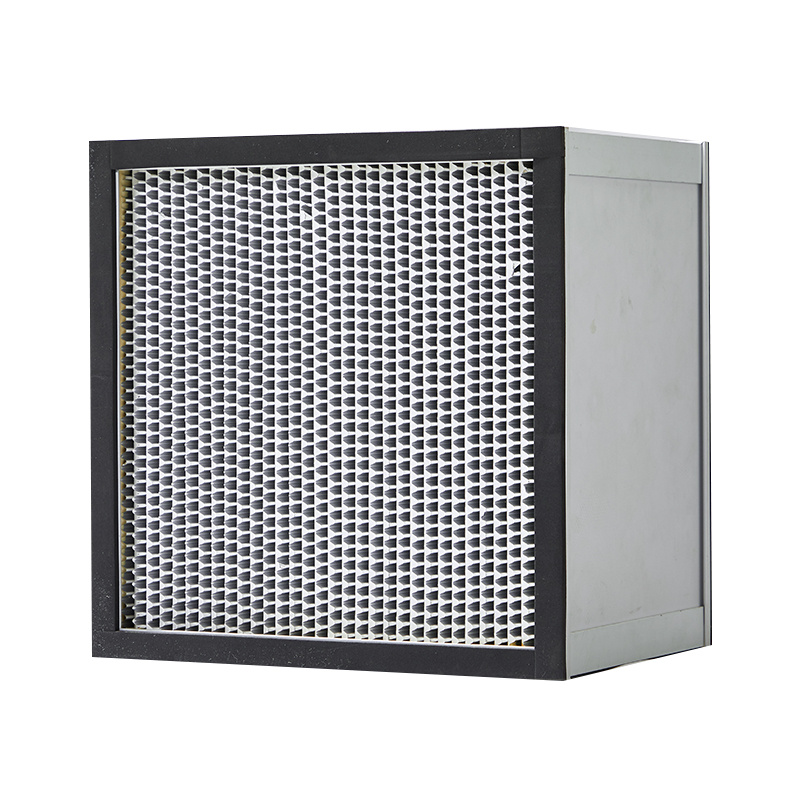

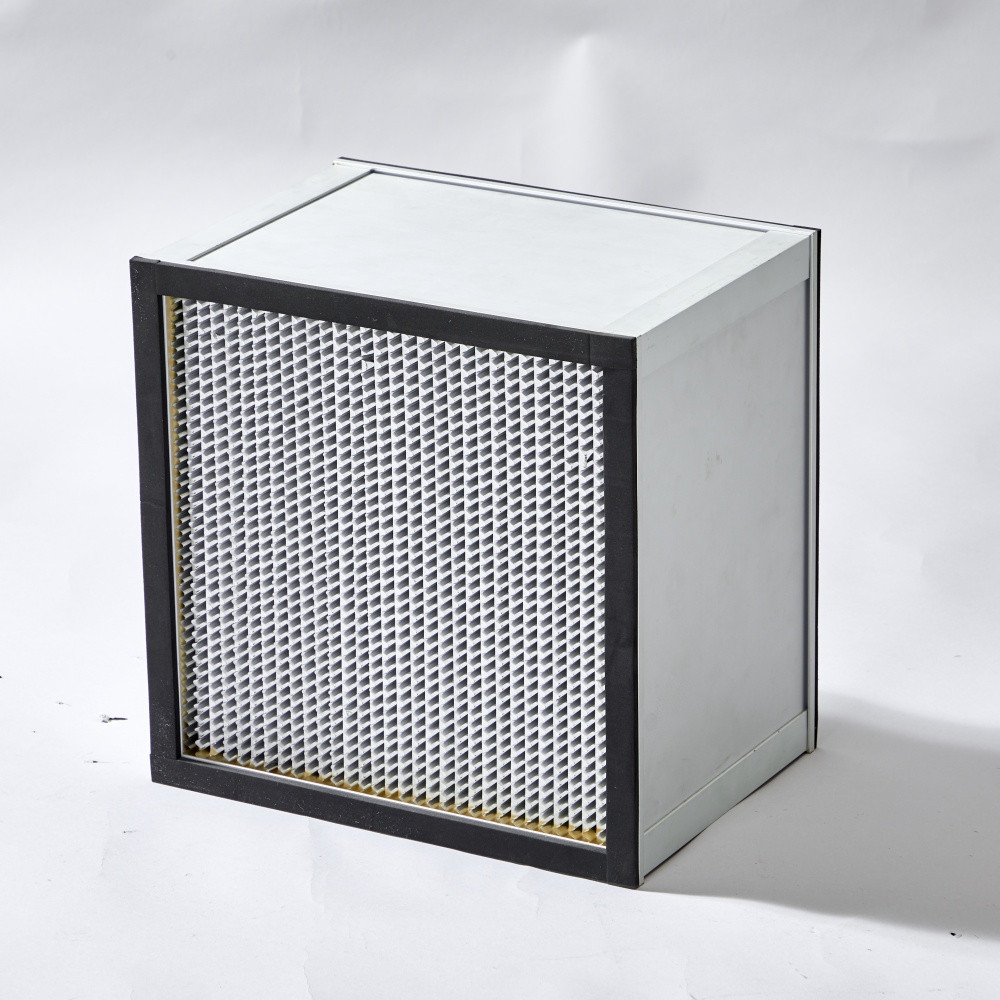

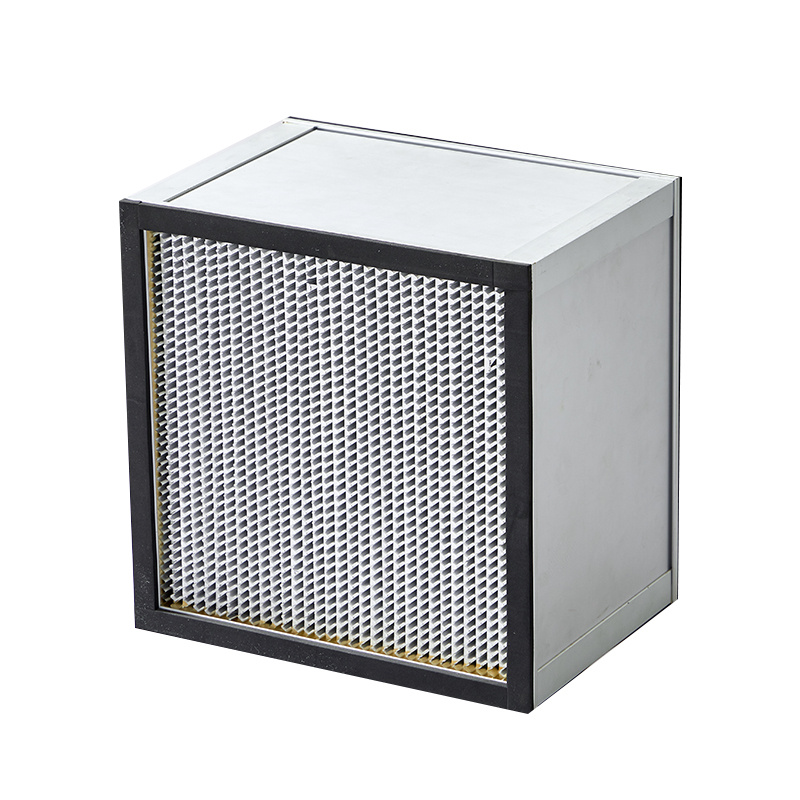

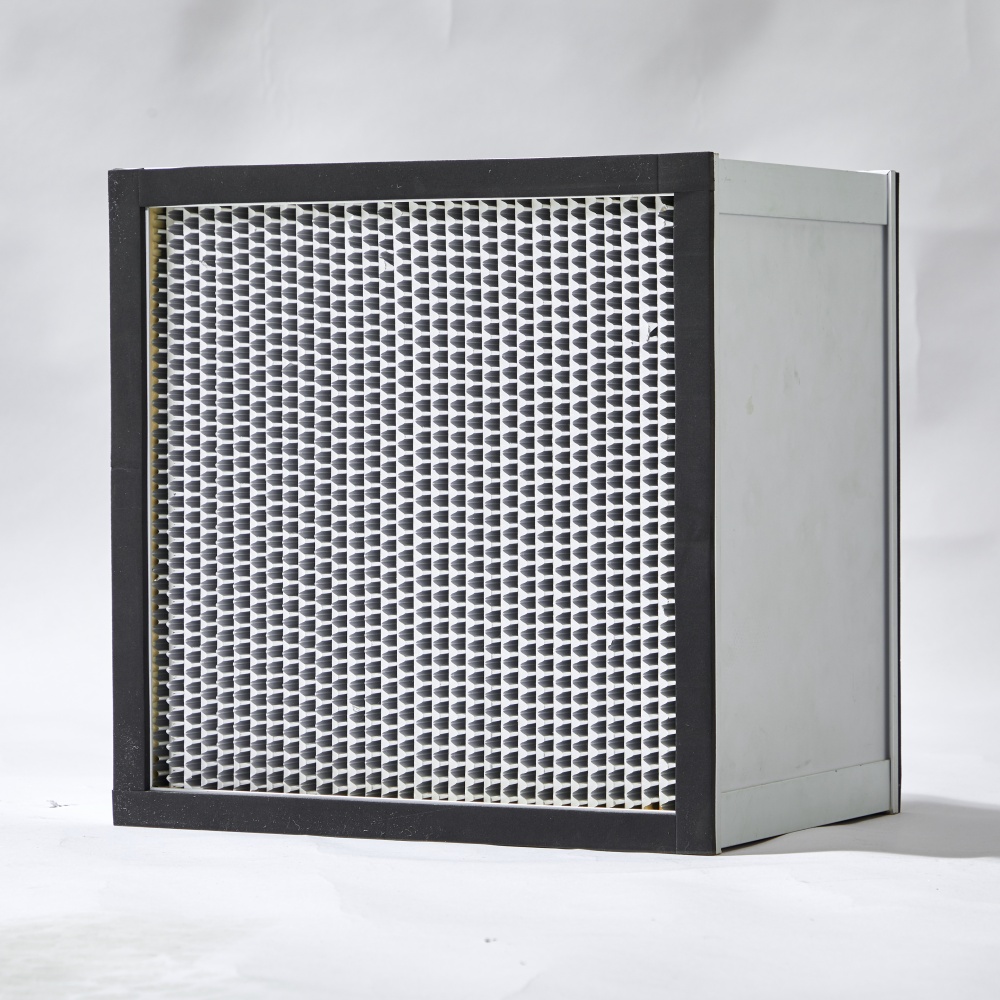

H14 Deep Pleated HEPA Filter

The deep pleated high efficiency air filter is designed for the final filtration stage of various ventilation equipment, dust removal systems and air supply systems with high cleanliness requirements. Its advanced design ensures effective filtration of particles in the air, making it very suitable for applications with strict air quality requirements.

Product Detail

Main Features

1. Large filtration area:

Deep pleat design provides larger filter area, resulting in higher dust holding capacity and longer service life.

2.High filtration efficiency:

Capable of capturing a wide range of airborne particles, including fine dust, allergens and other pollutants, ensuring clean air output.

3. Low resistance:

Designed to maintain low airflow resistance, improving energy efficiency and reducing operating costs.

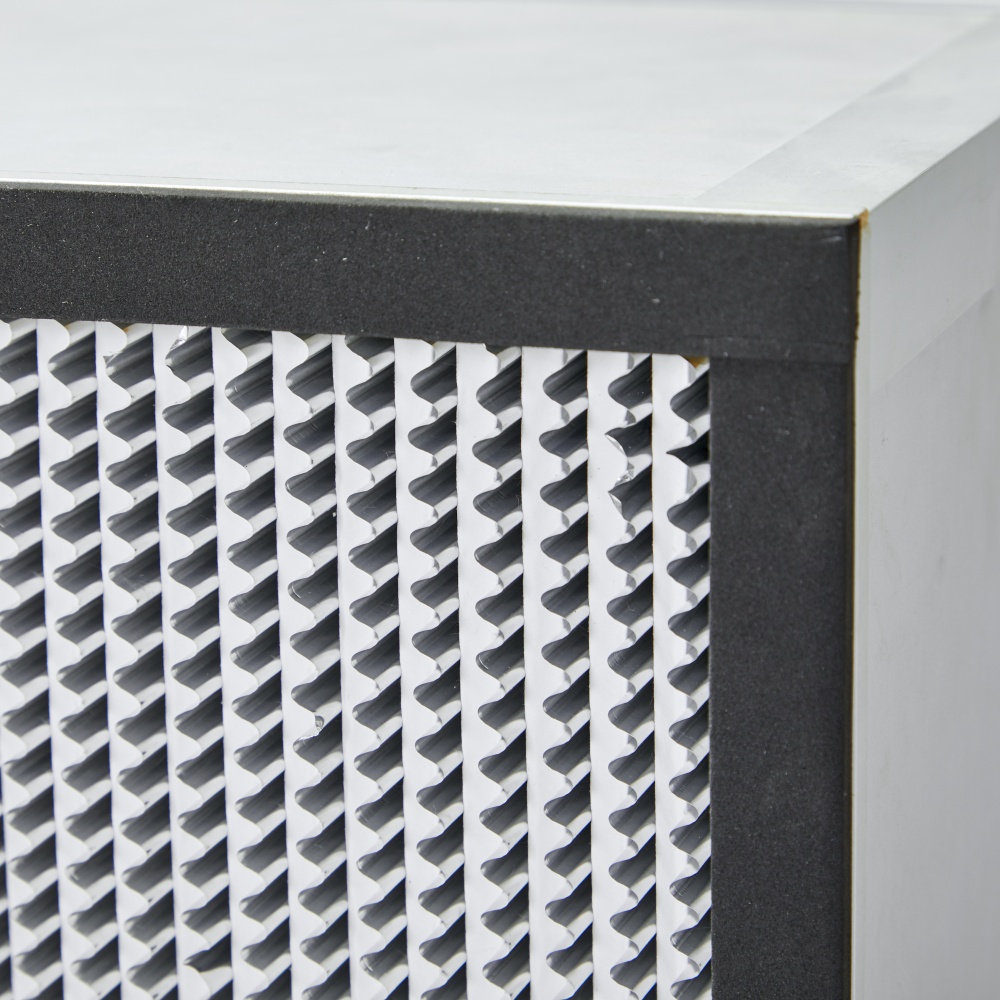

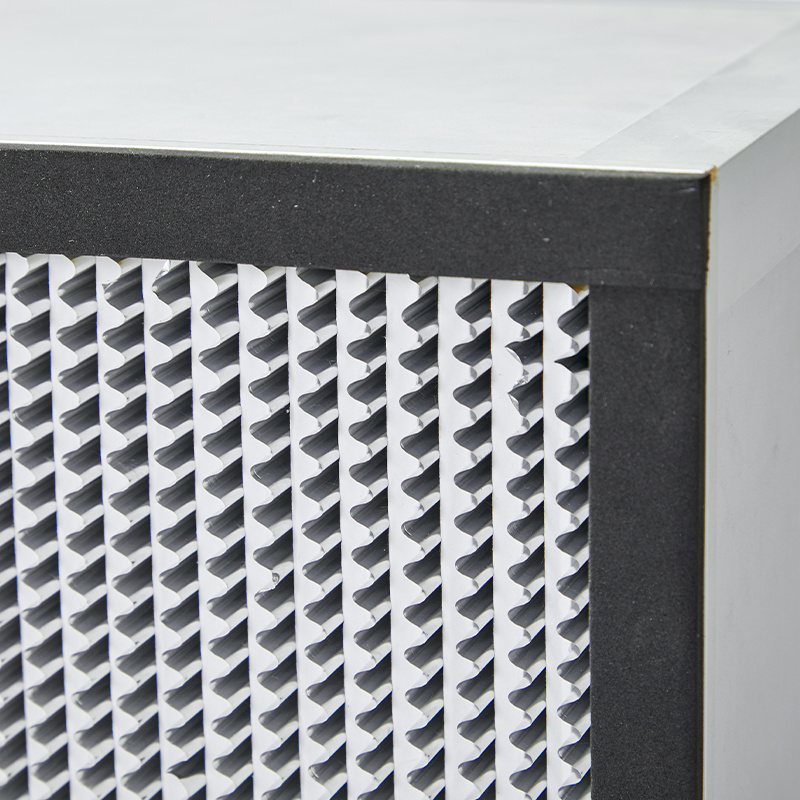

4. Even pleat spacing:

Ensures consistent airflow and filtration efficiency across the entire filter surface, preventing airflow restriction.

5.Stable airflow:

Designed to maintain steady airflow, essential for the efficient operation of ventilation and air distribution systems.

6. Excellent air tightness:

Provides good air tightness, minimizing air leakage and improving the overall effectiveness of the filtration system.

7.High temperature resistance:

Withstands temperatures up to 80°C, ensuring reliable performance in a variety of applications.

8. Moisture resistance:

Designed to operate effectively in environments with relative humidity up to 100% RH, making it suitable for different conditions, due to the isolation provided by the aluminum foil.

application

Ventilation Equipment: Ideal for use in HVAC systems where high cleanliness levels are required.

Dust Removal Equipment: Effectively captures fine dust particles in industrial environments.

Air Supply Systems: For applications requiring clean air, such as laboratories, clean rooms and medical facilities.

An essential component for maintaining high air quality standards in environments where cleanliness is critical, this deep-pleated HEPA filter provides reliable filtration and contributes to a healthier environment.

Specification

Model	Outside size WHD(mm)	Rated air flow(m³/h)	I.N.P (Pa)	Filter efficiency	Material

					Frame	Filters material	Partition material	Sealant
LY-D-H	320320220	400	≤200pa	≥99.99%@0.3μm	Plank Aluminum alloy Galvanized sheet Stainless sheet	Fiberglass filter paper	Aluminum foil Veneer paper	Polyurethane rubber
	484484220	1000
	610610150	1000
	820600150	1200
	630630220	1500
	968484220	2000
	945630220	2200
	1260630220	3000
Note: Special Size Available Upon Request.
