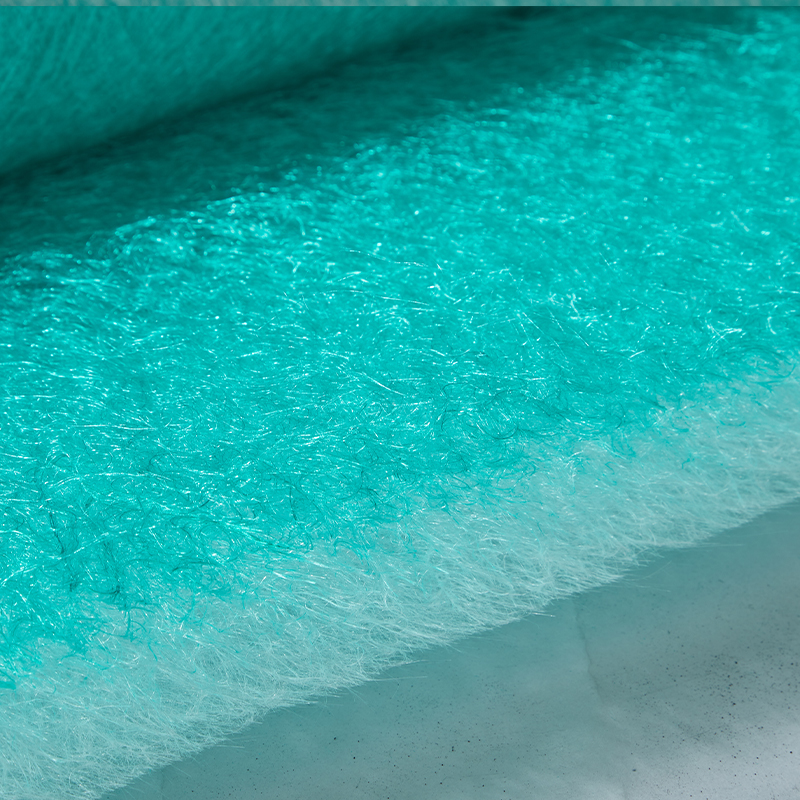

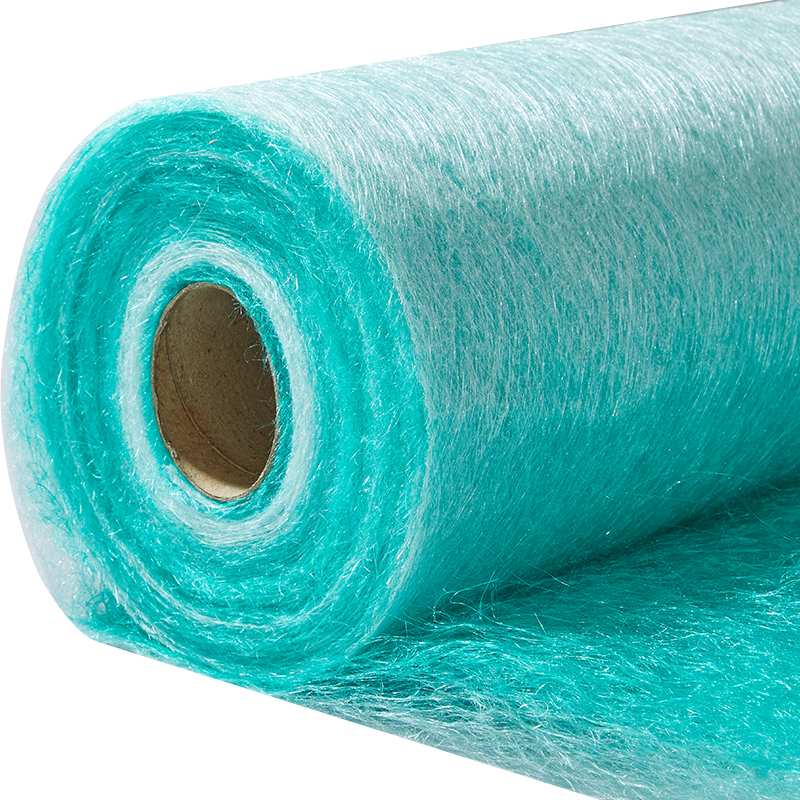

Paint Spray Booth Filter Media Roll
Main Features
Filtration Grade: Available in G3; MERV 5 and MERV 6 to ensure effective capture of airborne particles.
Filter Material: Made from filament glass fibers that are thermally bonded and internally connected to form a strong filter media.
High Depth Filtration: Progressive density design follows the direction of airflow for high depth filtration, capturing particles of all sizes.
Resilient Structure: The filter media's fluffy, resilient structure allows for quick recovery after compression, ensuring consistent performance and effective capture of paint mist and dust.
High dust holding capacity: Multi-layer construction provides excellent dust holding capacity, extending filter life and reducing replacement frequency.
Corrosion Resistant: Specially designed to withstand high solvent, acid, alkali and high temperature conditions, ideal for use in paint spray booths.
Customizable Options: Available in a variety of media sizes and thicknesses to accommodate different spray booth or room setups, ensuring a perfect fit for your specific application.
The Paint Booth Filter Media Roll is an essential component for maintaining paint booth air quality, effectively capturing harmful particles and ensuring a cleaner, safer working environment. Its advanced design and customizable options make it a versatile choice for a variety of industrial applications.
Specification
| Model | Filtration Class | Thickness (mm) | Weight(g/㎡) | Dust holding Capacity(g/㎡) | Rated air velocity (m/s) | CMH | I.N.P (Pa) | F.N.P(Pa) | Capture rate |
| LY-PA-50 | G3 | 50 | 240 | ≥3500 | 2 | 7200 | 20 | 200 | 85% |
| LY-PA-60 | G3 | 60 | 260 | ≥3600 | 2 | 7200 | 23 | 200 | 90% |
| LY-PA-80 | G4 | 80 | 300 | ≥4000 | 1.75 | 6300 | 28 | 200 | 95% |
| LY-PA-100 | G4 | 100 | 350 | ≥5000 | 1.5 | 4500 | 40 | 200 | 98% |

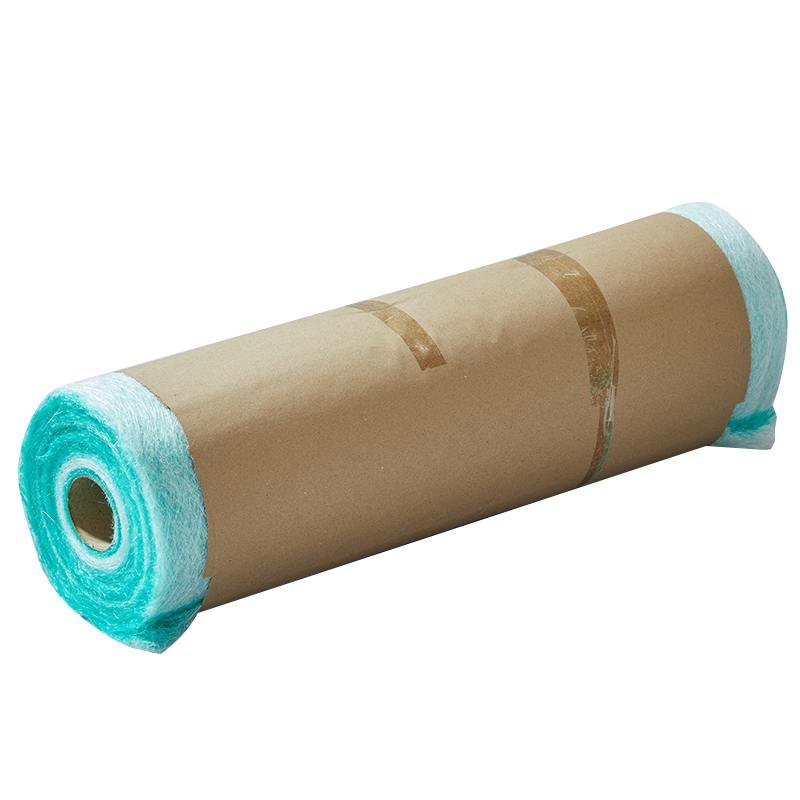

| Roll sizes standard: 0.8*20m 1*20m 2*20m | |||||||||
|
Note: other specifications can be customized according to requirements. |
|||||||||
