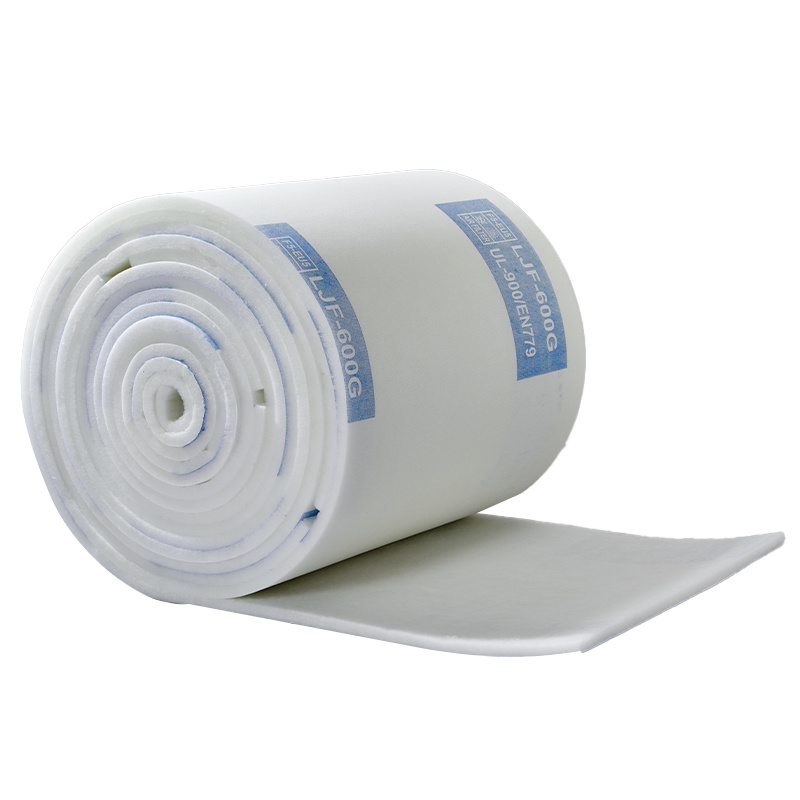

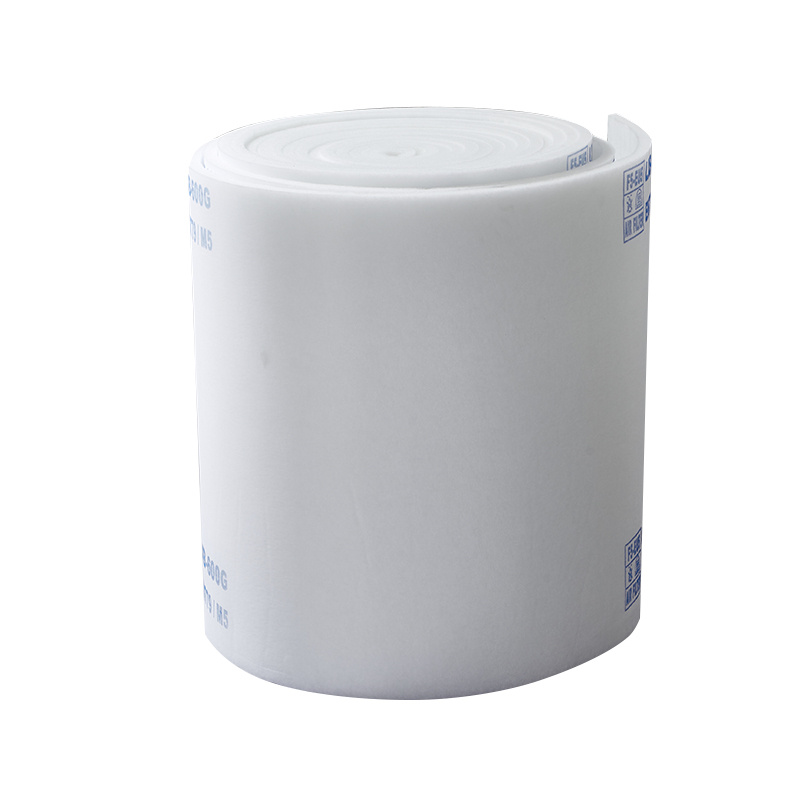

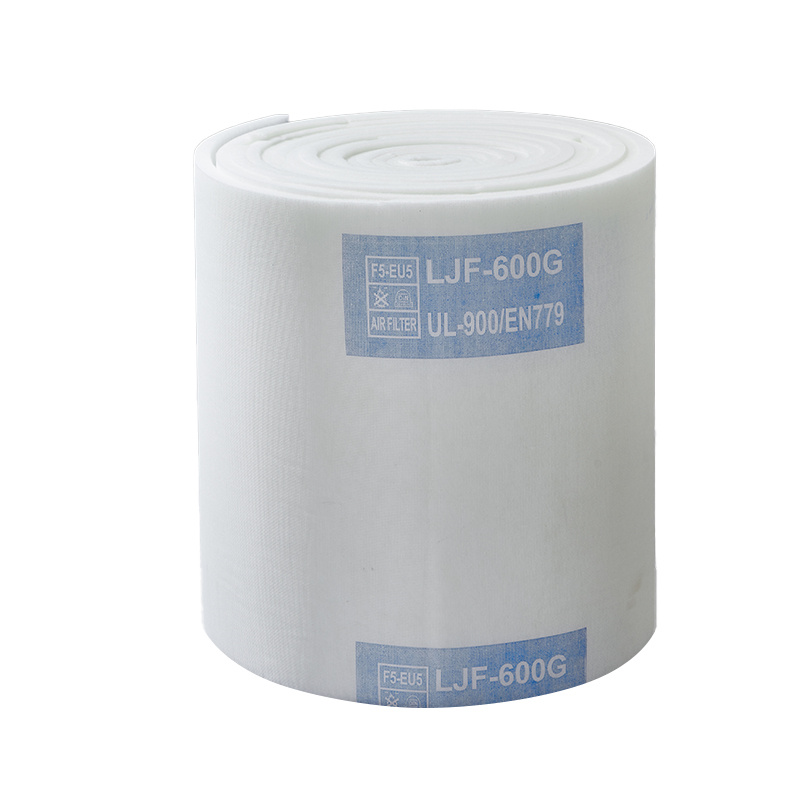

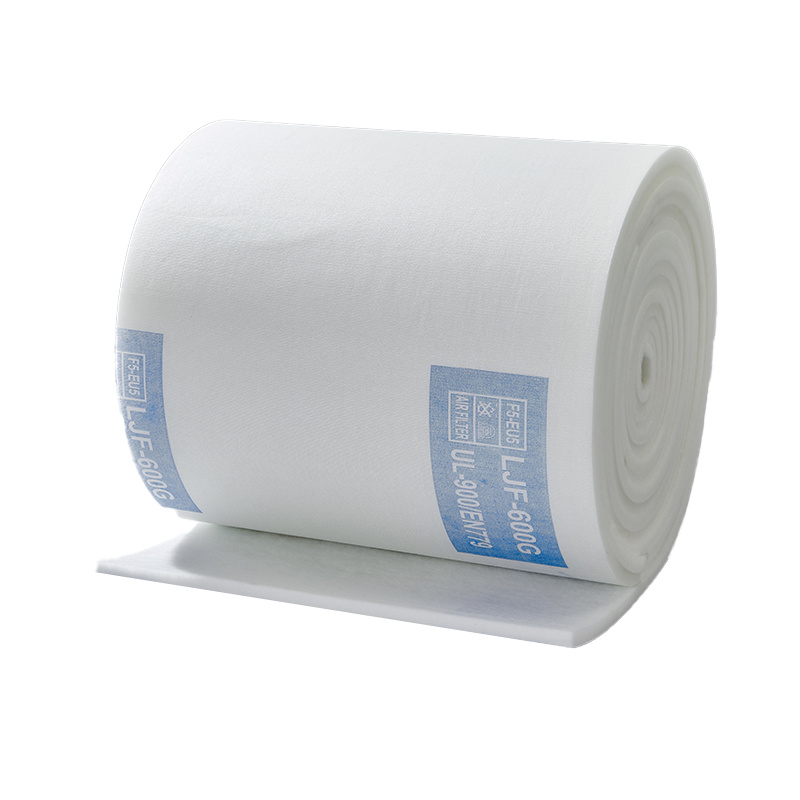

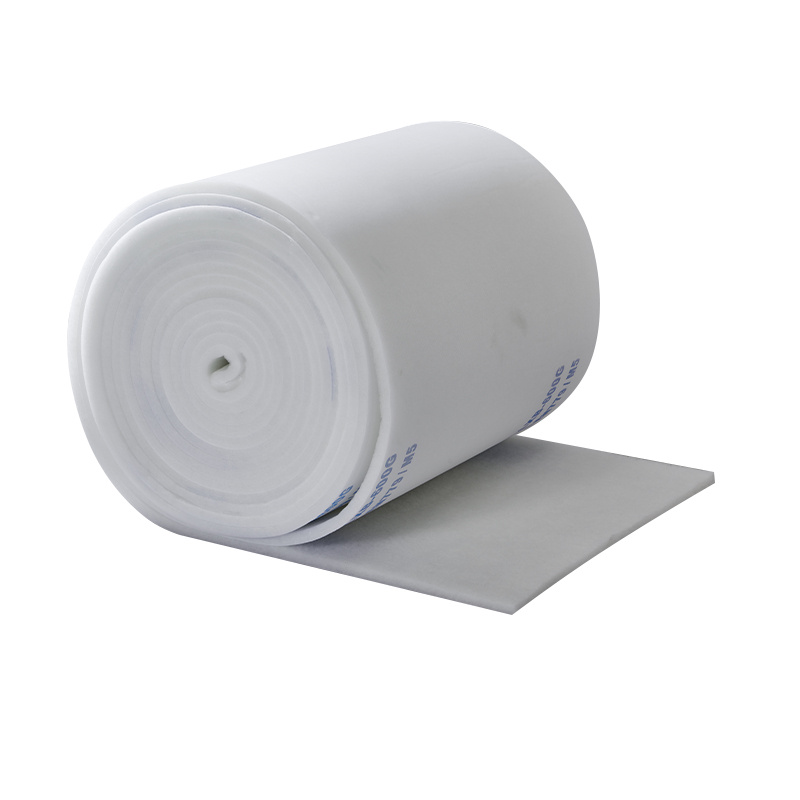

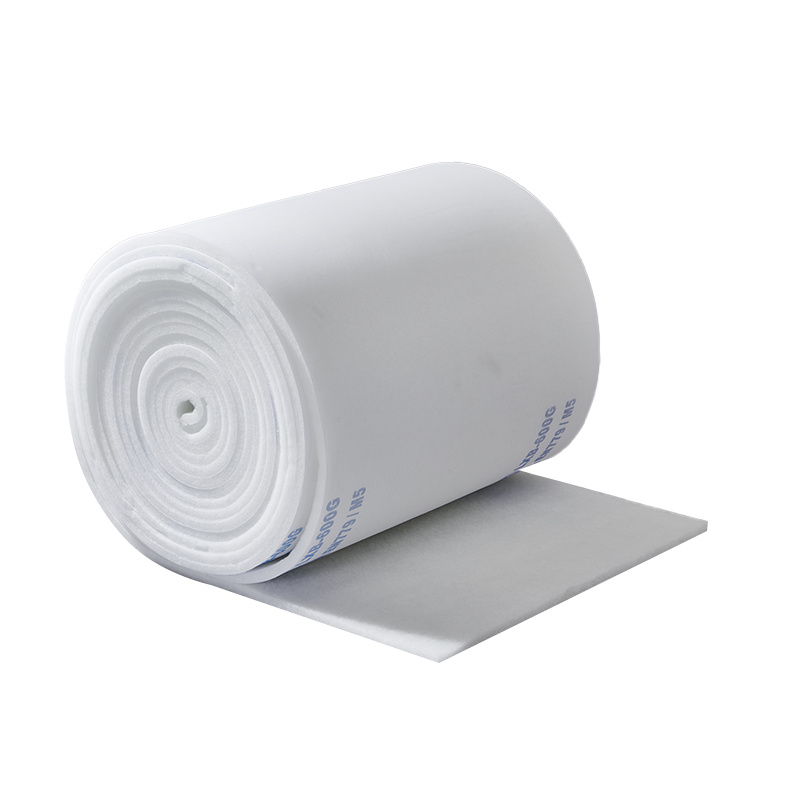

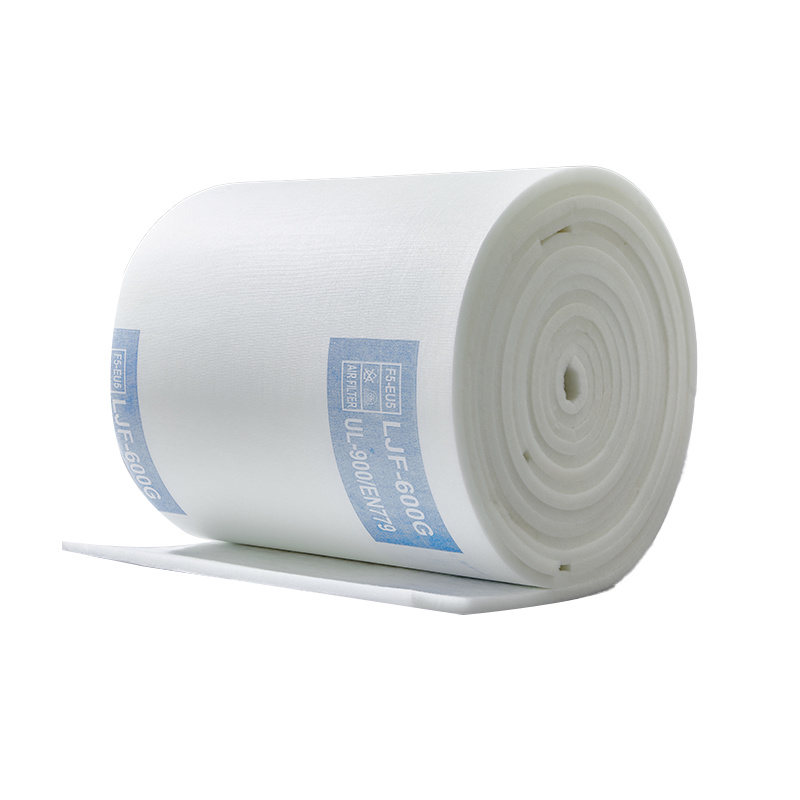

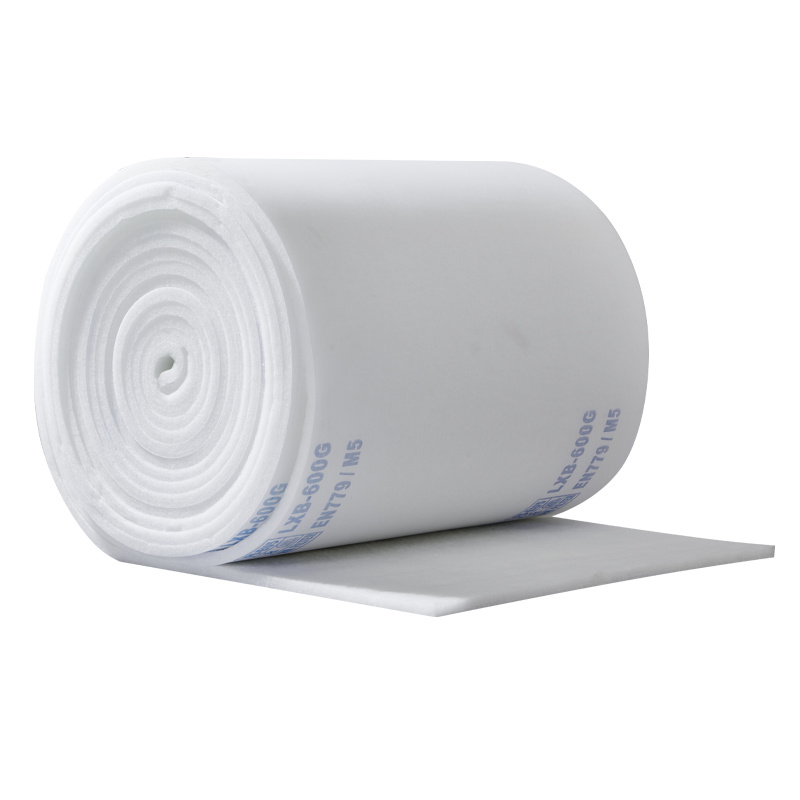

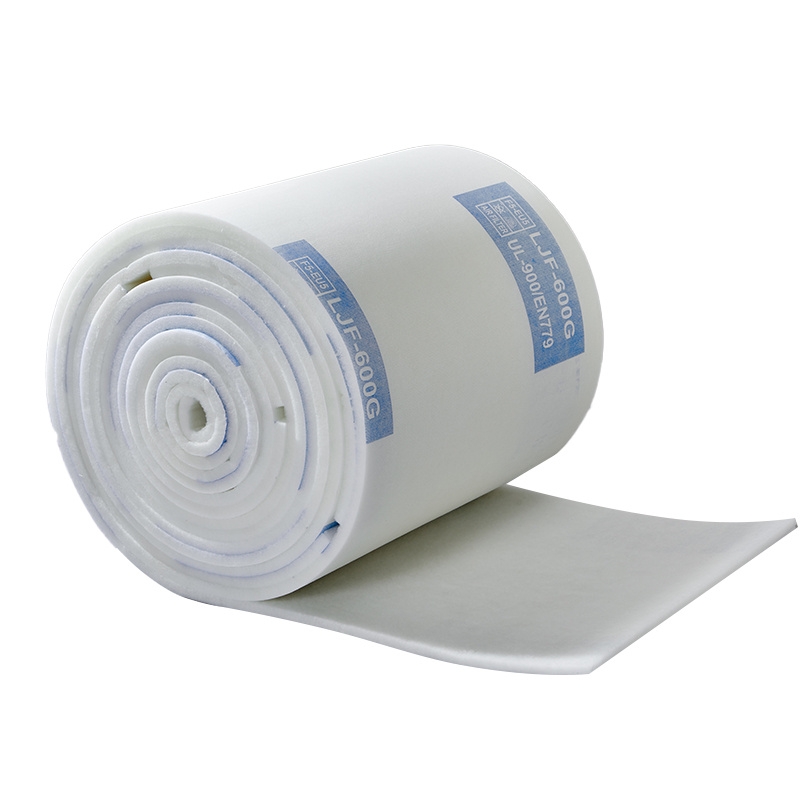

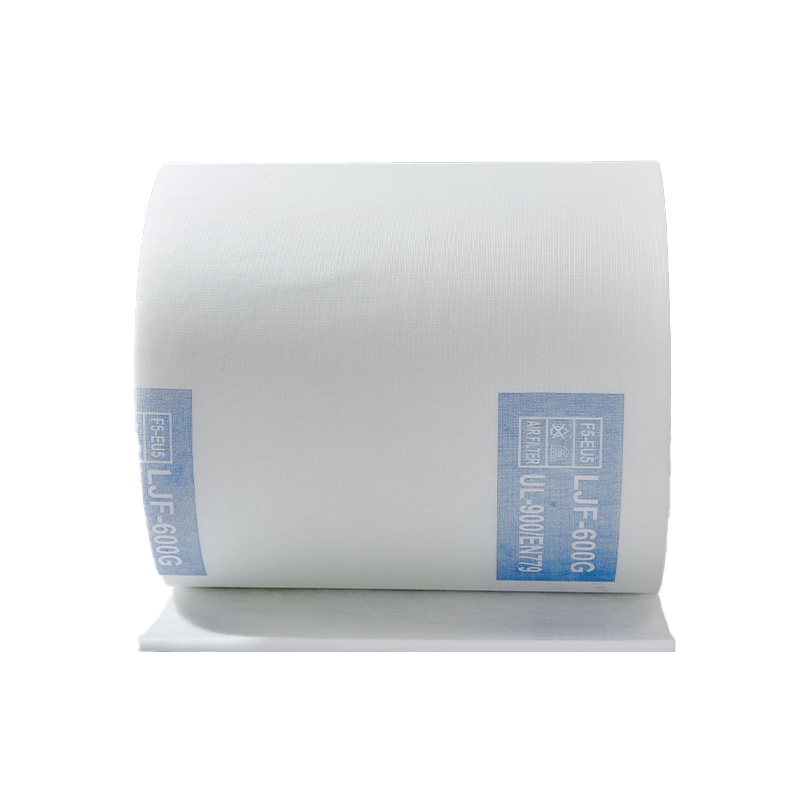

Spray Booth Ceiling Filter Media LJF-600G
Core Construction
Shatterproof synthetic fiber matrix with elastic recovery properties
Full-depth adhesive saturation for particle immobilization
Gradient density design increasing from intake to output surfaces
Performance Attributes
1. Multi-stage Filtration Mechanism:
Progressive fiber layering creates sequential filtration stages, enhancing contaminant capture efficiency while maintaining airflow consistency.
2. Customizable Media Configuration:
Adjustable surface adhesion levels (tack/dry variants) for application-specific requirements
3. Certification Compliance:
Meets international safety protocols (EU DIN53438-F1 & NA UL900-2 certified)
4. Precision Filtration:
Verified 100% retention efficiency for particulates >10μm
Multi-layered fiber alignment enables depth filtration
5. Operational Economy:
High dust-load capacity minimizes maintenance cycles
Stable pleat geometry ensures consistent pressure differential
6. Energy-efficient Design:
Optimized initial airflow resistance (≤30% reduction vs conventional filters)
Anti-collapse structure maintains integrity under variable static pressure
7. Material Safety:
Silicone-free composition prevents surface contamination risks
Industrial Applications
Primarily implemented in:
Automotive/industrial paint finishing systems
High-volume spray enclosure ventilation
Precision manufacturing air management
Process ventilation terminal filtration
This engineered filtration solution effectively maintains ISO Class 5-7 air cleanliness standards while demonstrating 40% extended service intervals compared to standard panel filters. The non-particulating media structure prevents secondary contamination, making it particularly suitable for critical surface coating applications where airborne defects must be eliminated.
Specification
|
Model |
Filtration Class | Average capture rate | Thickness (mm) | Weight(g/㎡) | Dust holding Capacity (g/㎡) | Ratedair velocity(m/s) | I.N.P (Pa) | F.N.P(Pa) | Scrim/Glue |
| LJF-600G | F5 M5 | 99% | 22±2 | 600 | 450 | 0.25 | 45 | 450 | Full glue |
| LJF-560G | F5 M5 | 99% | 22±2 | 500 | 400 | 0.25 | 40 | 400 | Full glue |
| LJF-460G | F5 M5 | 97% | 22±2 | 460 | 370 | 0.25 | 35 | 400 | Surface glue |
| LJF-400G | F5 M5 | 90% | 22±2 | 260 | 350 | 0.25 | 30 | 400 | without glue |
| Roll sizes standard: 1*21m 1.6*21m 2*21m | |||||||||
|
Note: other specifications can be customized according to requirements. |
|||||||||
