• Under the rated air volume, it needs to be replaced in 3 - 6 months.

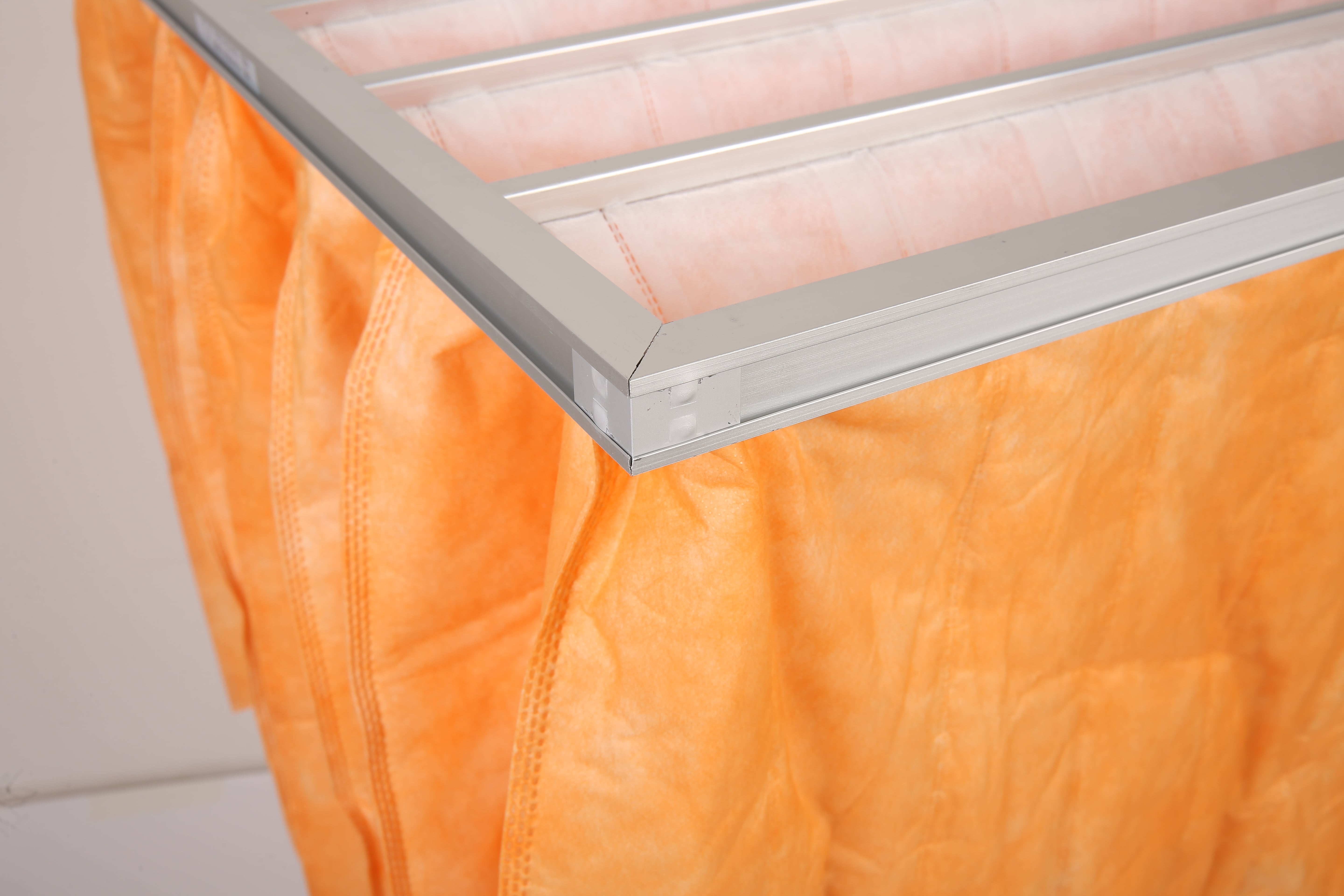

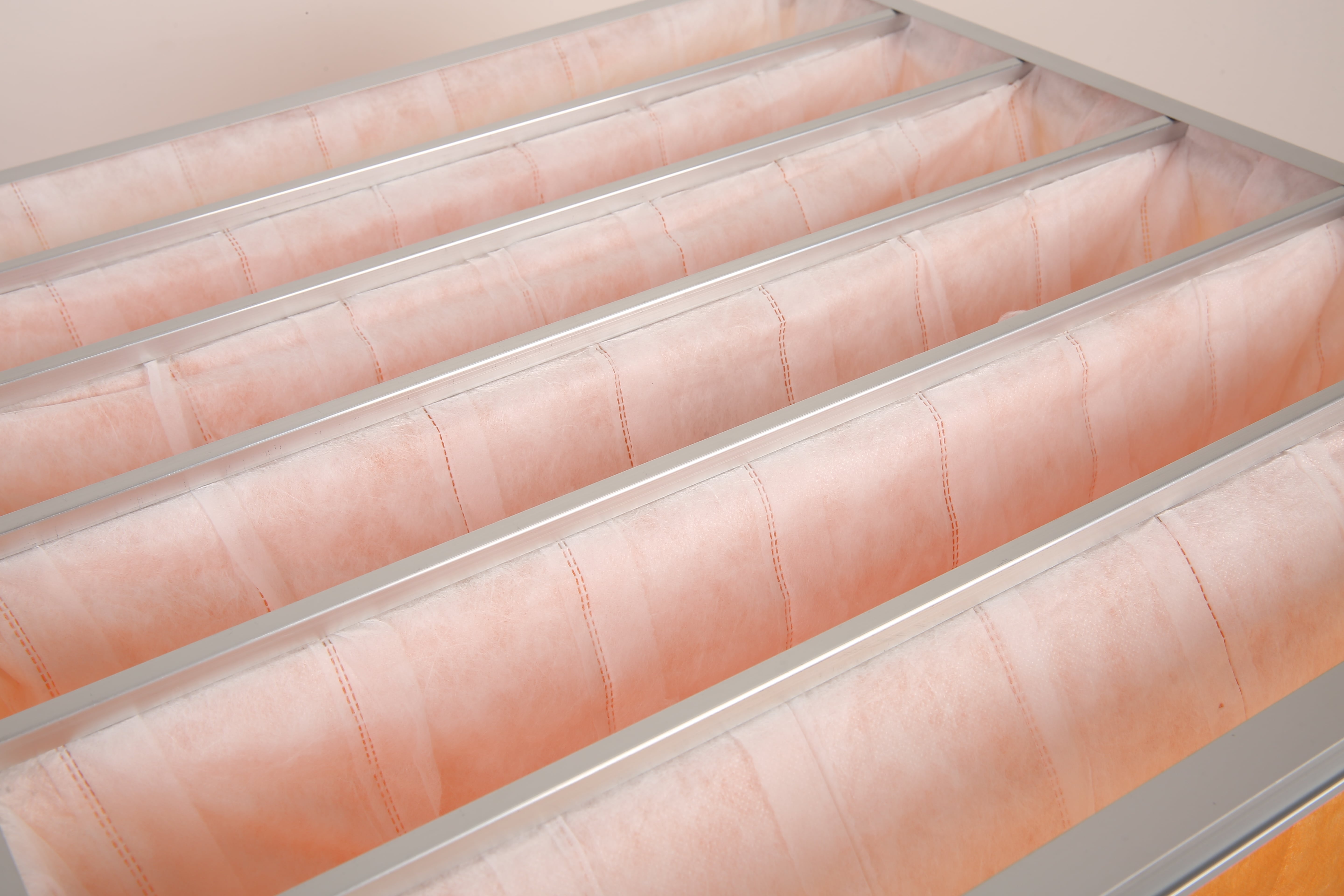

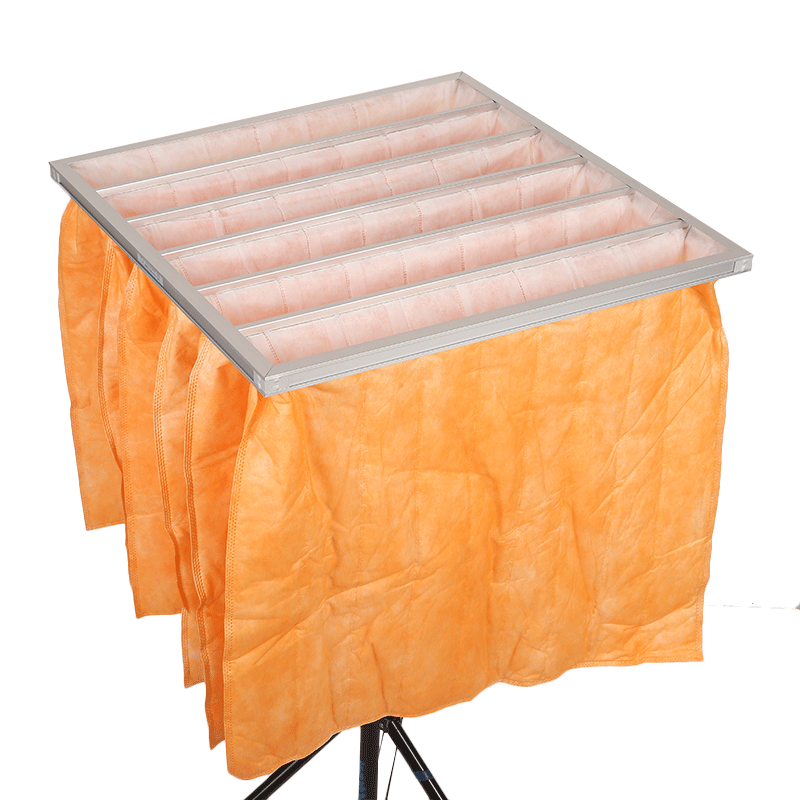

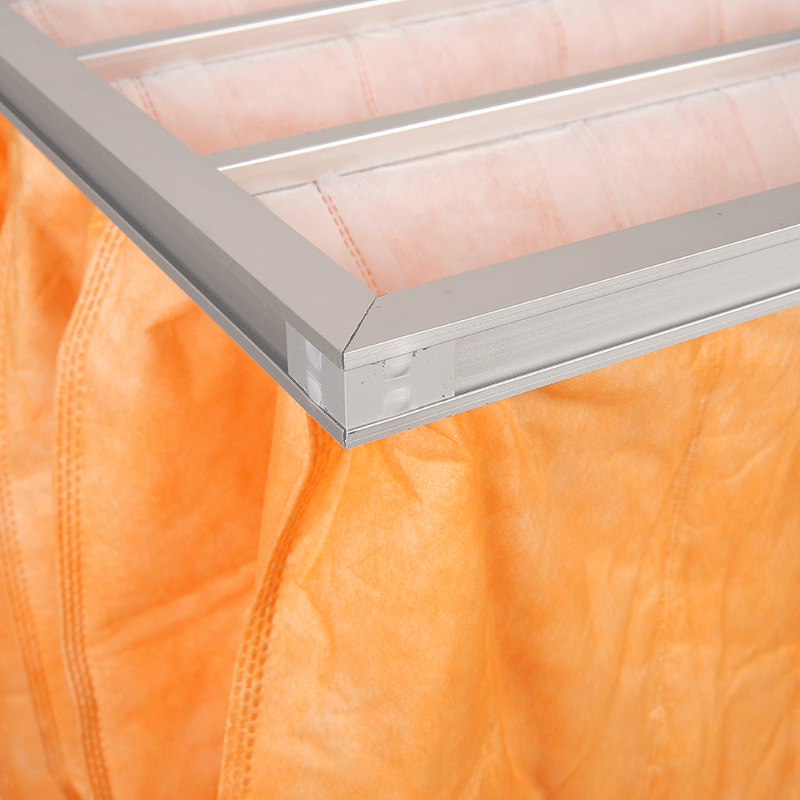

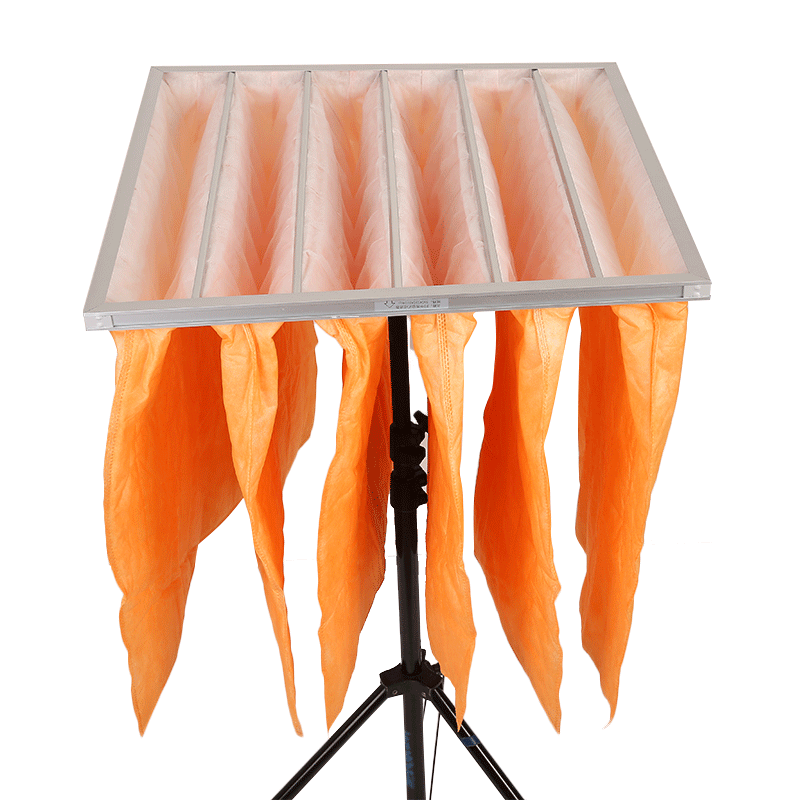

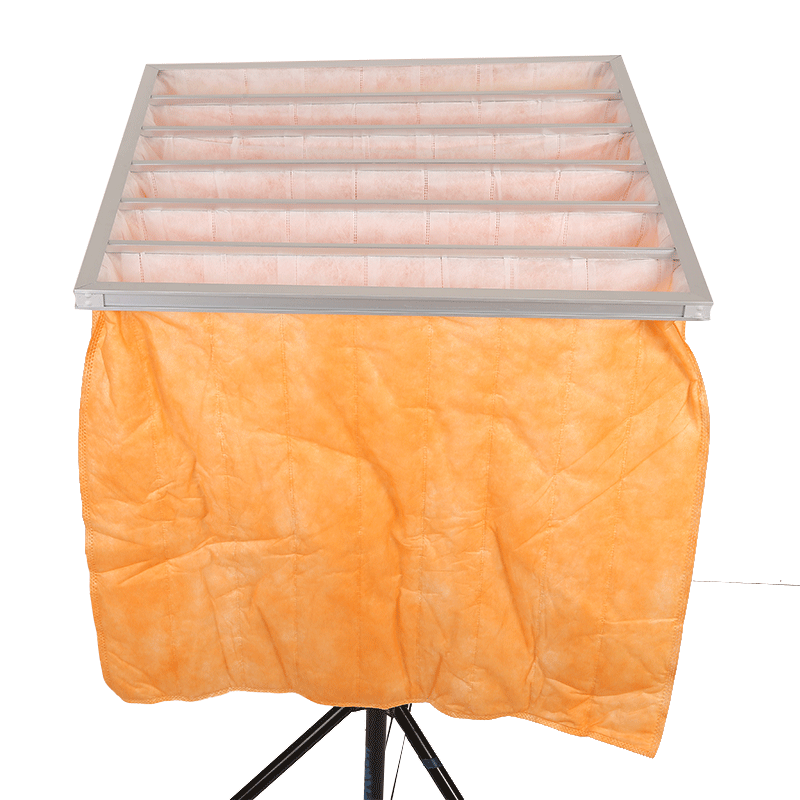

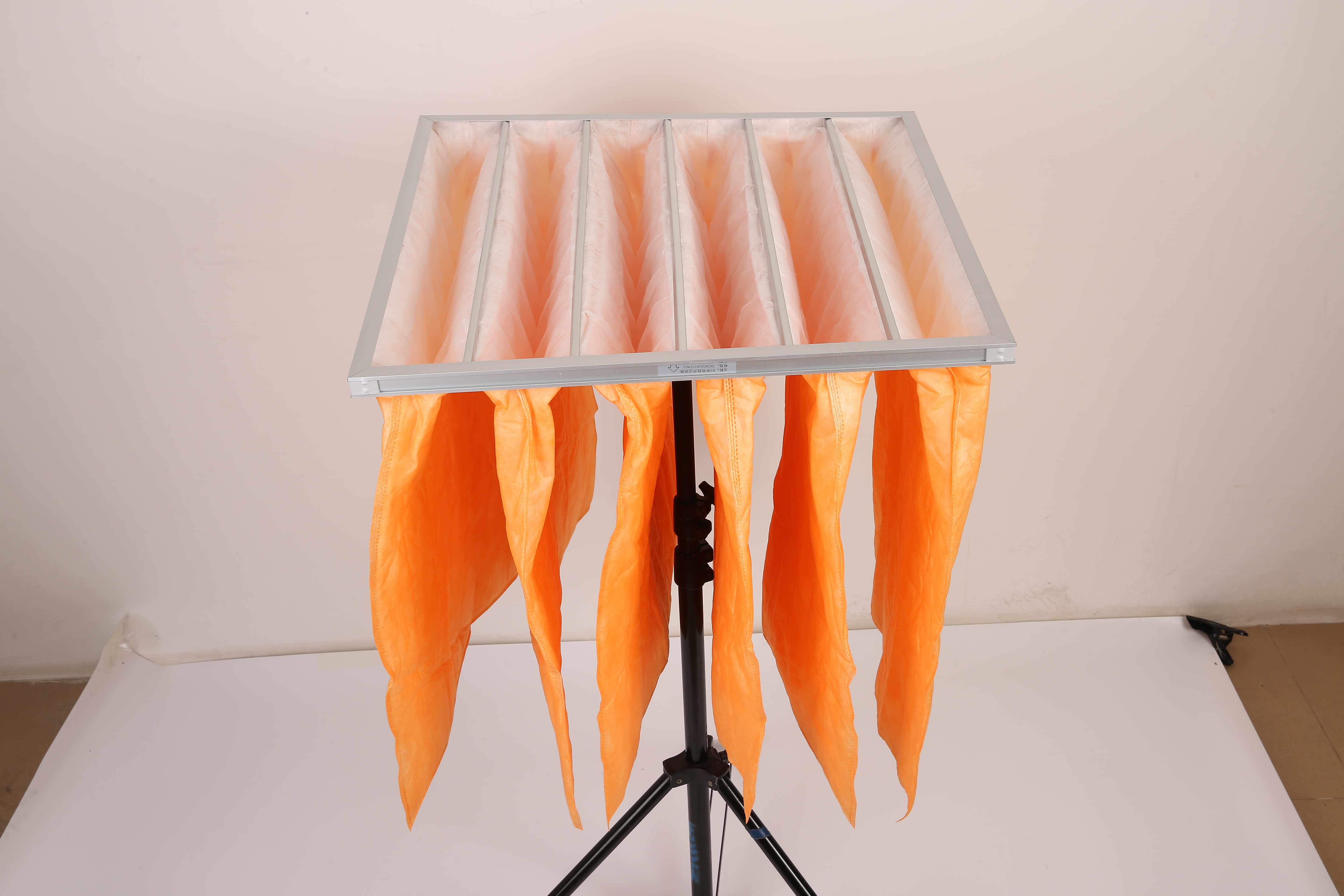

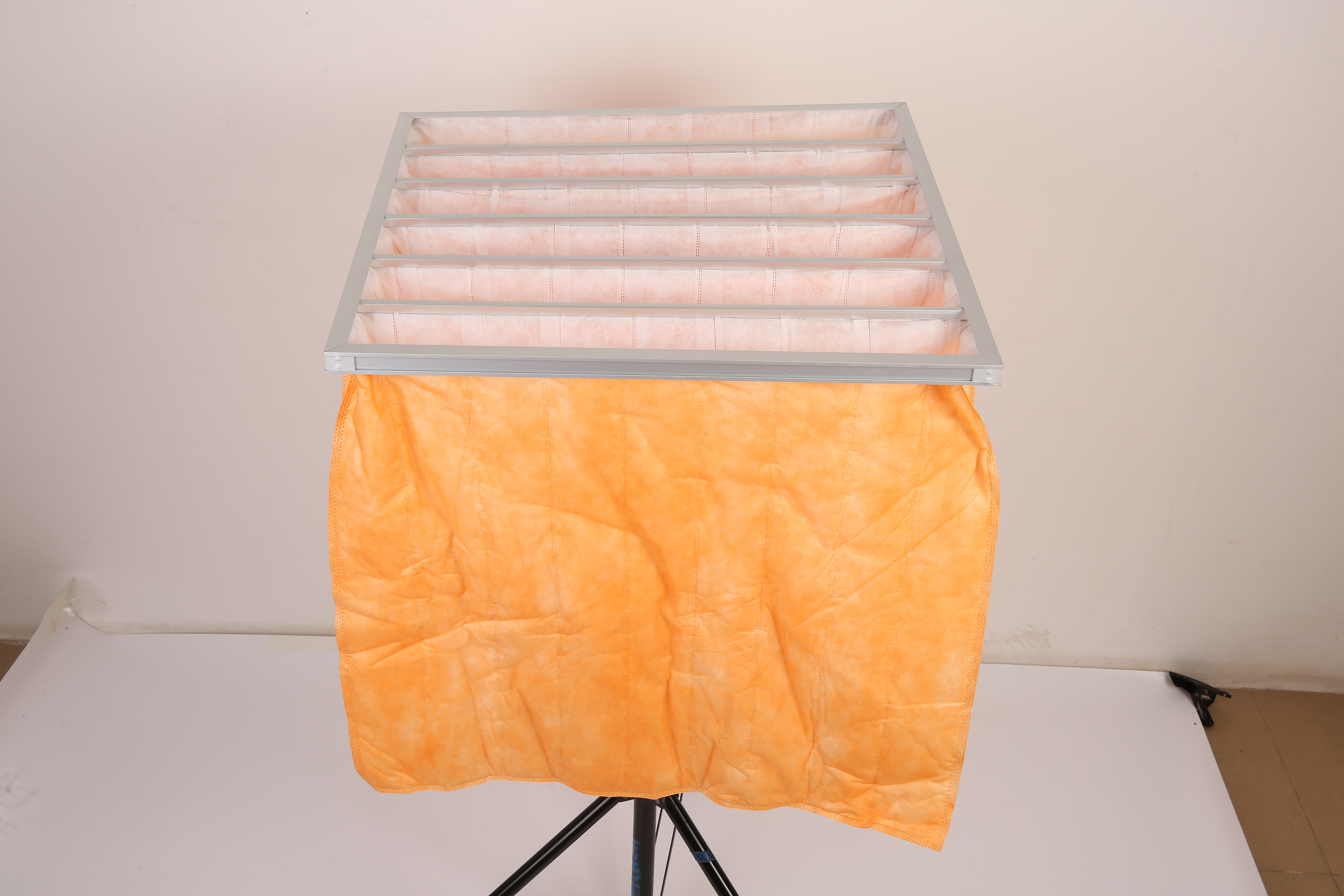

M6 F6 Synthetic Pocket Filter
What is Synthetic Pocket Filter？
The filter material is made of high-performance non-woven fabric by the thermal melting process, to avoid the discomfort caused to the human body by old-fashioned glass fiber materials. The filter material contains electrostatic fiber, which has an excellent filtering effect on sub-micron dust.
Features
o Extra long service life
o High burst resistance
o Large surface area
o Fits all commonly used filter frames
o High efficiencies at low pressure drops
o Uniform identification is used for appearance color, which is easy to identify.
Application
The pocket filter is suitable for intermediate filtration in an air conditioning system. It is located in front of the HEPA filter.
It is mainly used to filter 1-5 megabytes of dust particles to protect the lower filters in the system and the system itself. It has the advantages of small resistance and a large volume of air. Optional style has bag type, frame type, and combination type.
Dimensions & Technical Details
| Bag (pcs) | Size (mm) | Rated Airflow (m³/h) | Filter Object (μm) | Initial Resistance(Pa) | ||||
|---|---|---|---|---|---|---|---|---|
| M5 | M6 | F7 | F8 | F9 | ||||
| 8 | 592×592×600 | 2200/3400 | ≥0.4 | <35/45 | <45/65 | <55/80 | <65/100 | <65/110 |
| 6 | 592×592×600 | 2200/3400 | ≥0.4 | <40/50 | <55/75 | <60/85 | <65/110 | <70/120 |
| 5 | 492×592×600 | 2000/3000 | ≥0.4 | |||||
| 4 | 287×592×600 | 1100/1700 | ≥0.4 | |||||
Note:other specifications can be customized according to requirements
Synthetic Bag Filter Technical Specification
| Filter Type | Pocket Filter |
| Filter Class (EN 779) | M5 |
| Filter Media & Separator | Non-woven Fabric |
| Filter Frame | Aluminum/Galvanized/Plastic |
| Temperature Resistance | 80°C |
| Max. Temperature | 100°C |
| Relative Humidity | 100% |
| Rec. Final Pressure Drop | 400 - 450 Pa. |
How often should bag filters be replaced?
Replacement Cycle:
• Resistance of 450Pa or more must be replaced.
• If it is washable filter material, it can be washed with clean water or neutral detergent solution to dry and then used, washed up to two times, and then replaced.
• The dust concentration in the environment is large, and the service life will be shortened.
 |
 |
 |
 |
 |
 |
