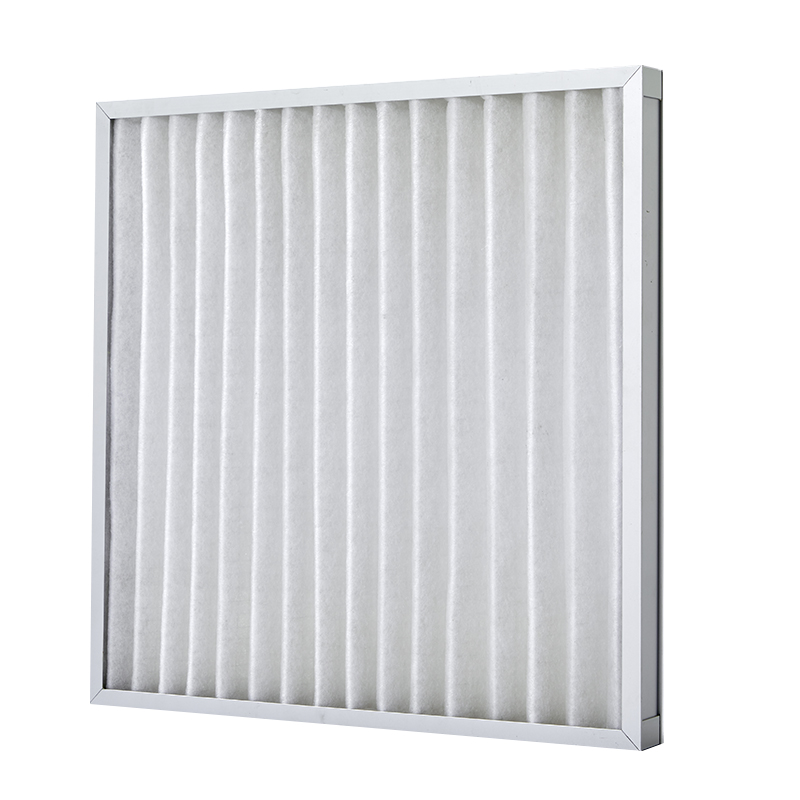

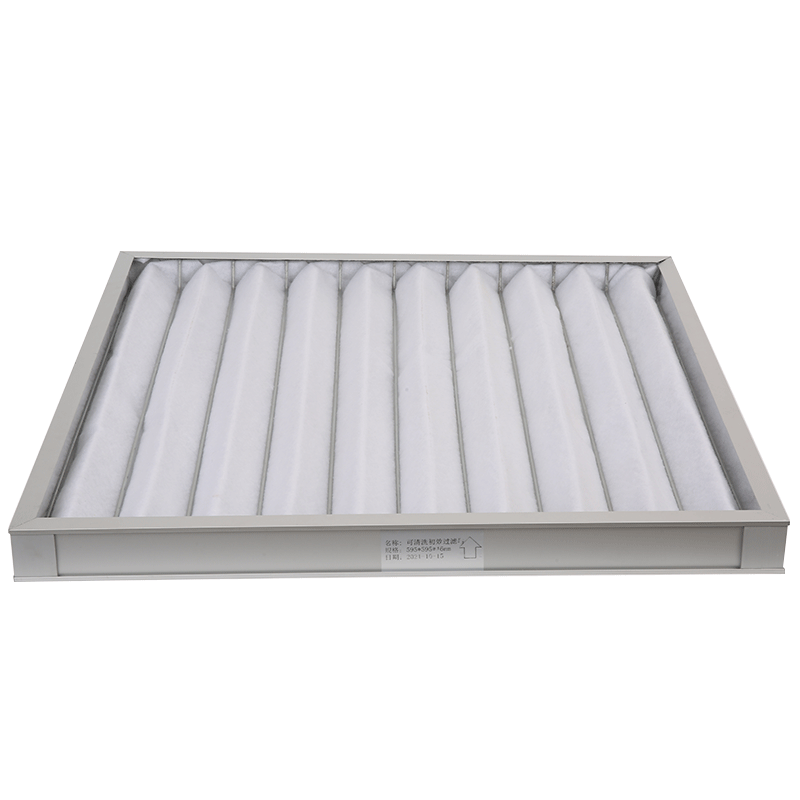

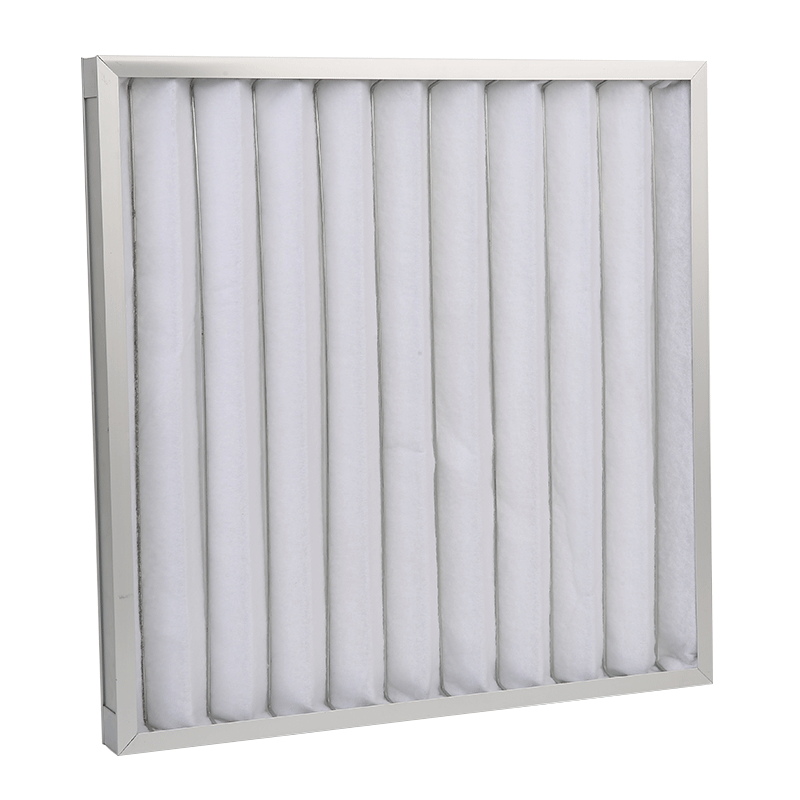

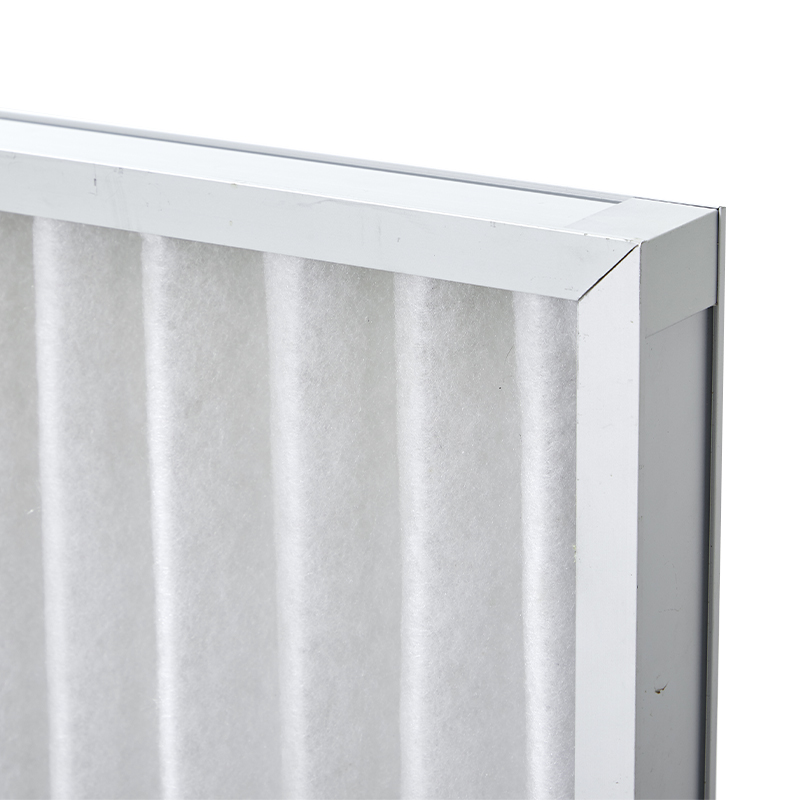

Washable Pleated Pre-filter
Features
1. High Dust Holding Capacity: effectively captures large amounts of dust and particles, improving overall filtration efficiency.
2. Low Pressure Drop: Maintains optimal airflow with minimal resistance, ensuring energy efficiency of the HVAC system.
3. Washable: Designed to be easy to clean and reuse, reducing waste and operating costs.
4. STURDY CONSTRUCTION: Built to last, ensuring durability and longevity.
5. Beautiful Appearance: Beautiful design that complements a variety of installations.
Washable pre-filters are an excellent choice for improving the performance of air conditioning and dust collection systems while providing a sustainable and cost-effective filtration solution.
Specification
|
Model |
Size(mm) |
CMH (m³/h) |
I.N.P(pa) |
F.N.P(pa) |
Filter object |
EFF.(%) |
Filtration class |
|
LY-W-H25 |
595*595*25 |
1700/3400 |
≤40/80 |
≤255 |
≥5μm |
95% |
G4 |
|
495*495*25 |
1200/2400 |
≤40/80 |
≤255 |
≥5μm |
95% |
G4 |
|
|
295*595*25 |
850/1700 |
≤40/80 |
≤255 |
≥5μm |
95% |
G4 |
|
|
LY-W-H46 |
595*595*46 |
1200/2400 |
≤40/80 |
≤255 |
≥5μm |
95% |
G4 |
|
495*495*46 |
850/1700 |
≤40/80 |
≤255 |
≥5μm |
95% |
G4 |
|
|
295*595*46 |
1700/3400 |
≤40/80 |
≤255 |
≥5μm |
95% |
G4 |
|
|
LY-W-H96 |
595*595*96 |
1700/3400 |
≤40/80 |
≤255 |
≥5μm |
95% |
G4 |
|
495*495*96 |
1200/2400 |
≤40/80 |
≤255 |
≥5μm |
95% |
G4 |
|
|
295*595*96 |
850/1700 |
≤40/80 |
≤255 |
≥5μm |
95% |
G4 |
|
|
Note: Special Size Available Upon Request. |
|||||||
